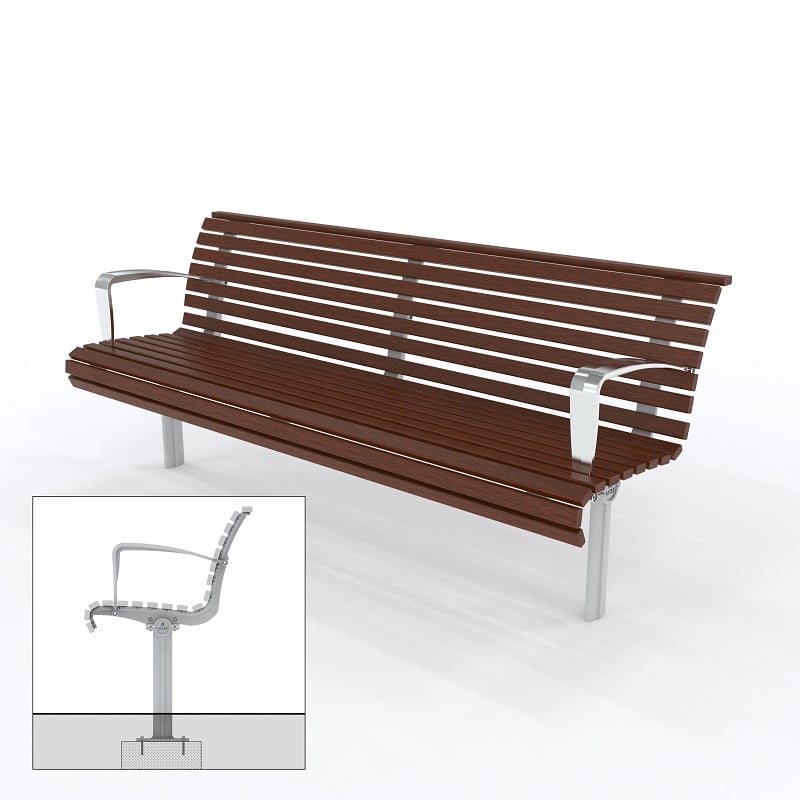

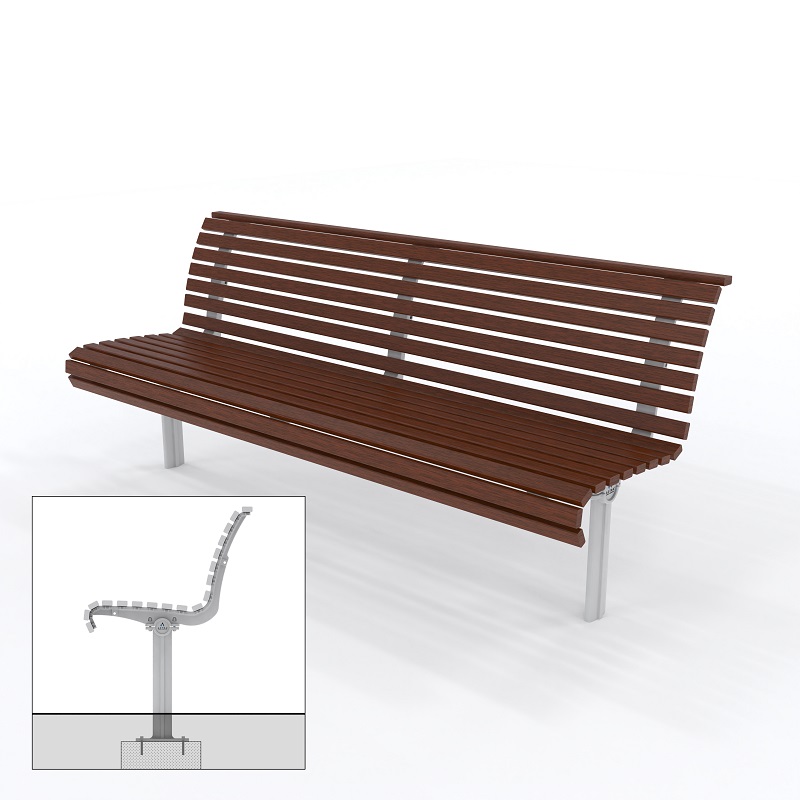

Madrid DDA Seat - Straight Subsurface Mount Leg
Code: 47-AMSBO18SSM-ALAR
Price Range: Premium
Description
The Madrid DDA Seat is a premium product with a carefully designed cast aluminium (silver powder coated) frame, smooth slender slats and subsurface mounted legs. Fully complies with DDA and Australian Standards.
This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made
Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.
* Please Note: Assembly Required
See more product & company information in our downloadable resources page here
Specifications
- Size: 1800(L) x 630(W) x 810(H)mm - Recommened Install Height
- Overall Height: 890mm
- Seat Height: 450mm
- Slat Profile: 40(W) x 20(H)mm
- Overall Seat Weight:
- Merbau Hardwood: 43kg
- Anodised Aluminium: 39kg
- Enviroslat Walnut: 75kg
- Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 39kg

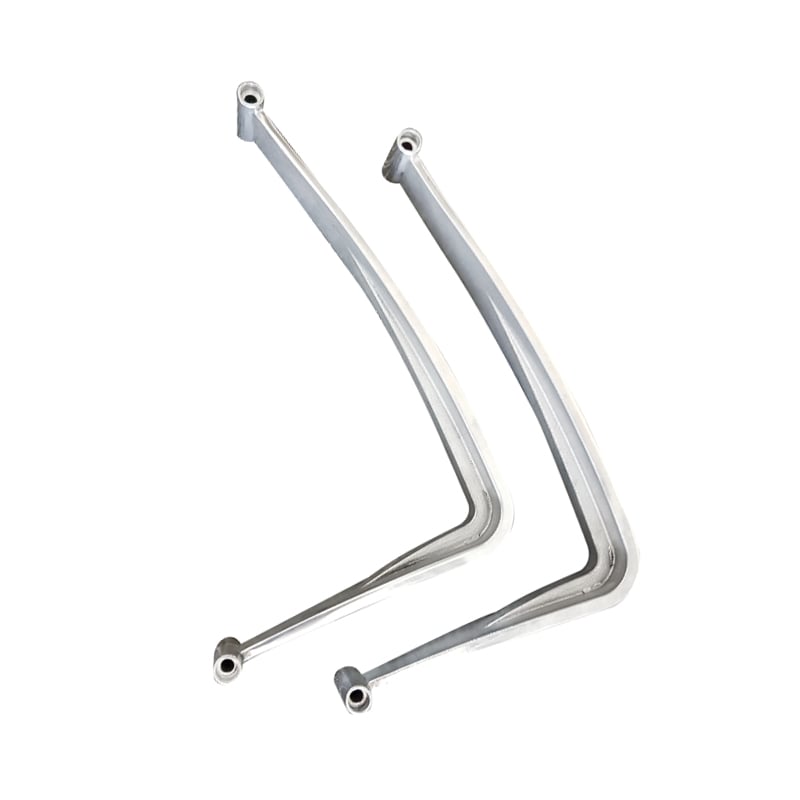

- Armrest (set of 2): 1.9kg each
- Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.
- Wood Grain Powder Coat has a 2-stage process with a lightly textured surface and is more durable than a standard powder coat. It is created using a unique coating process. This is a process of powder coating the aluminium, partially curing it, applying another layer of powder and then using a decorative drum to stamp the high-definition grain pattern into the surface. The aluminium is then fully cured combining both layers into a single, ultra durable powder coated finish. The thickness is 80 microns.
