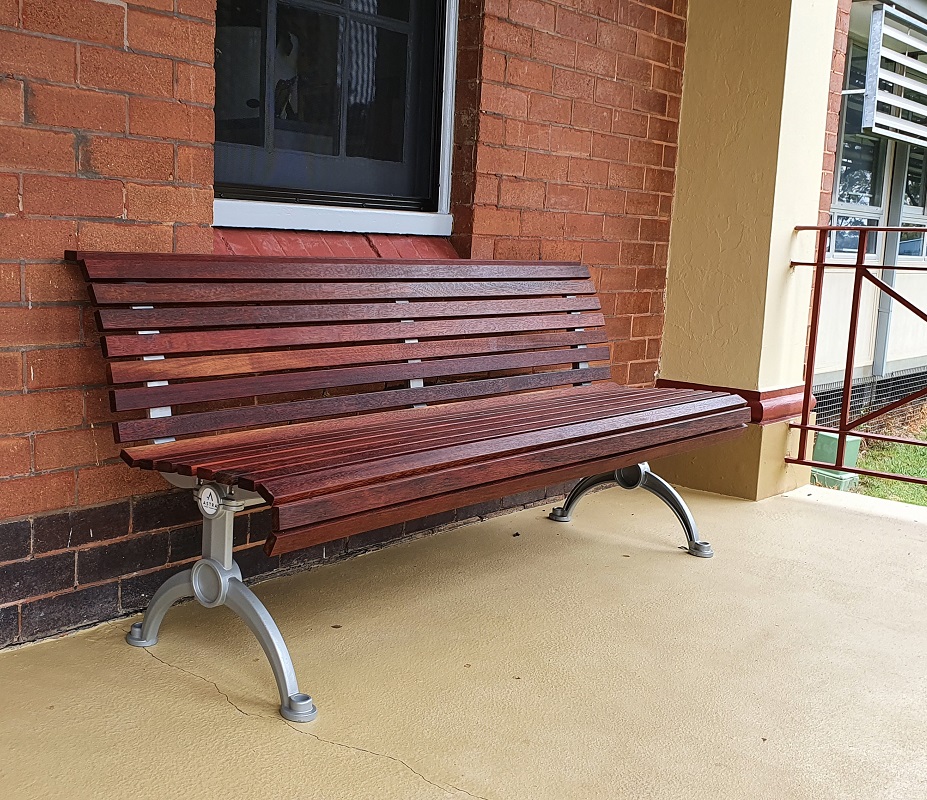

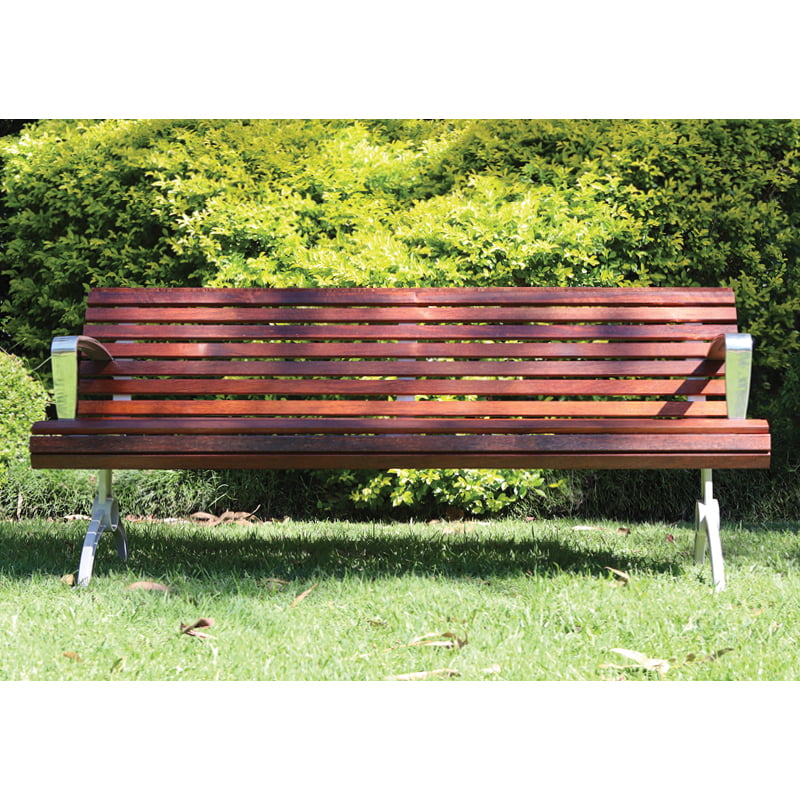

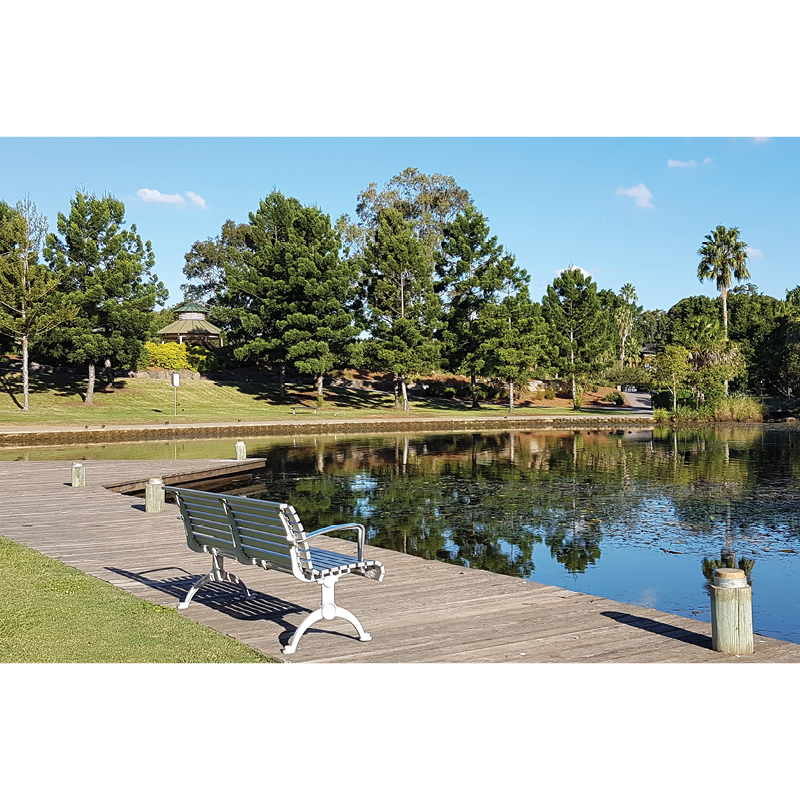

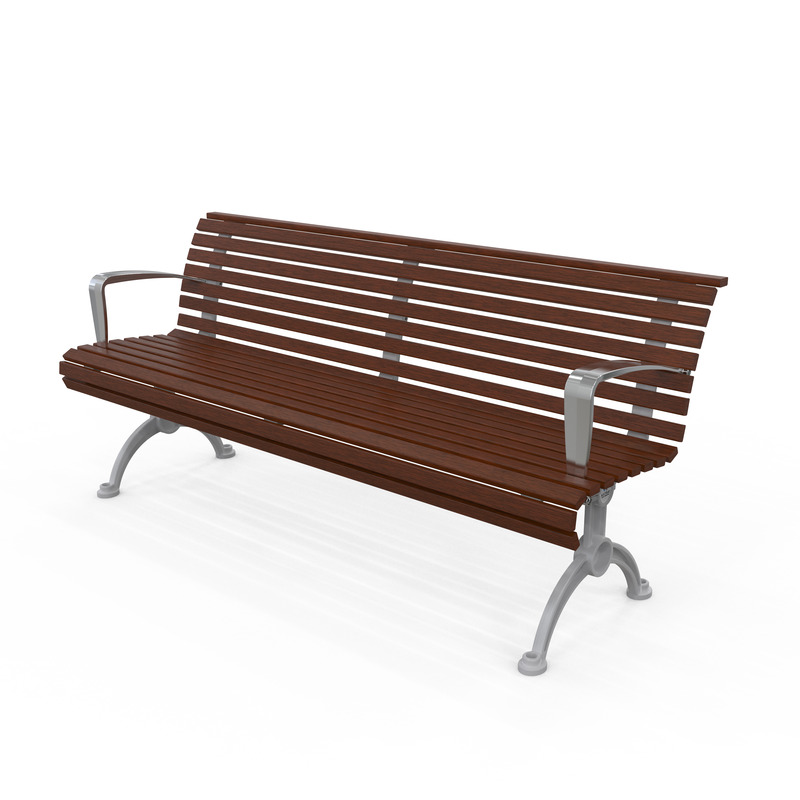

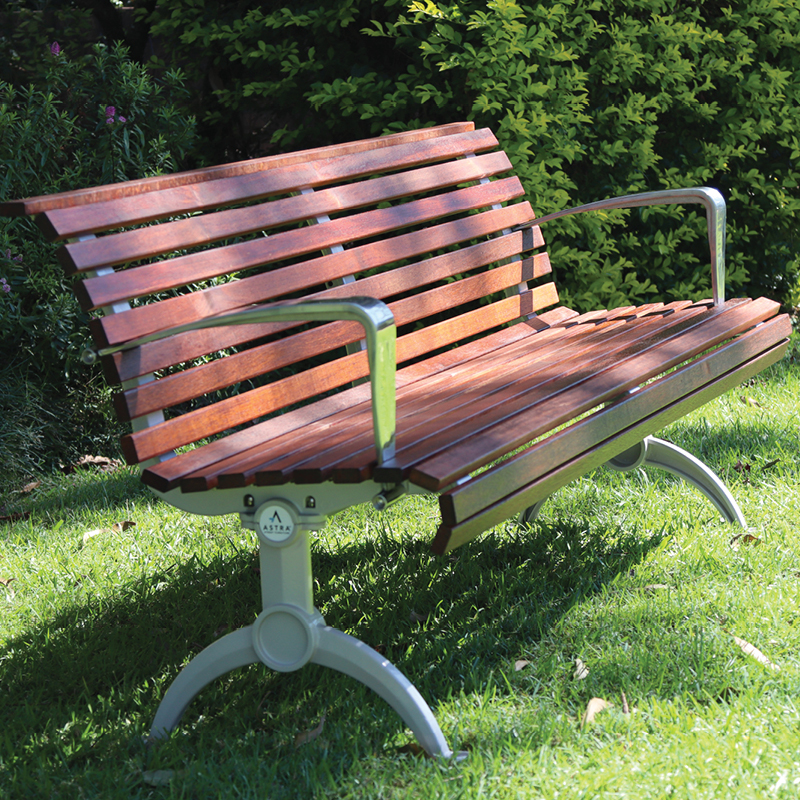

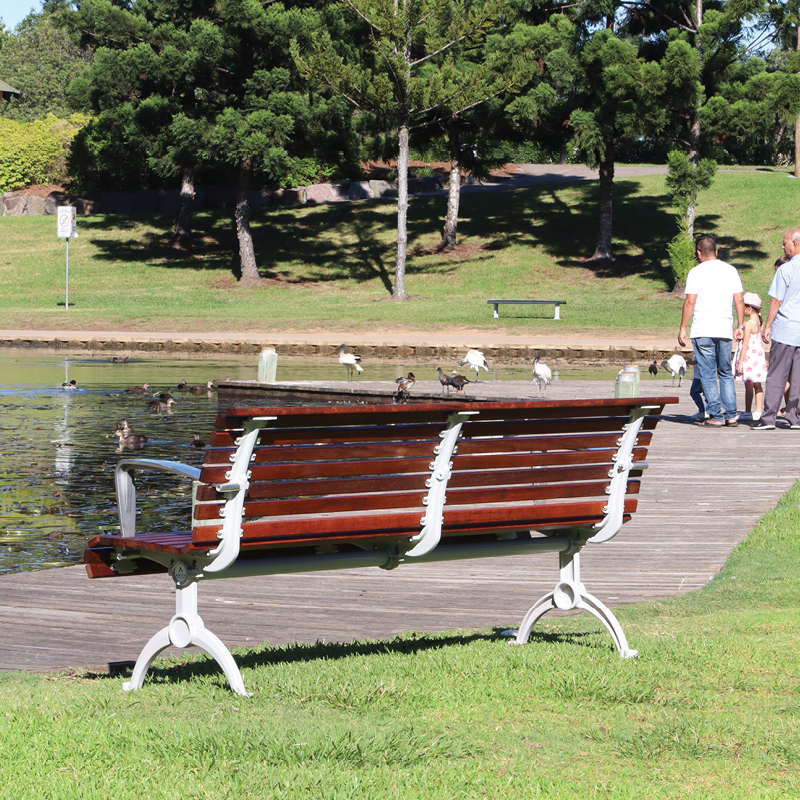

Madrid DDA Seat - Arch Leg

Code: 47-AMST18AR

Merbau Hardwood
  • Merbau Hardwood
  • Anodised Aluminium
  • Enviroslat Walnut
  • Wood Grain Aluminium - Western Red Cedar
  • Wood Grain Aluminium - Blonde Oak
  • No
  • Yes
+

Description

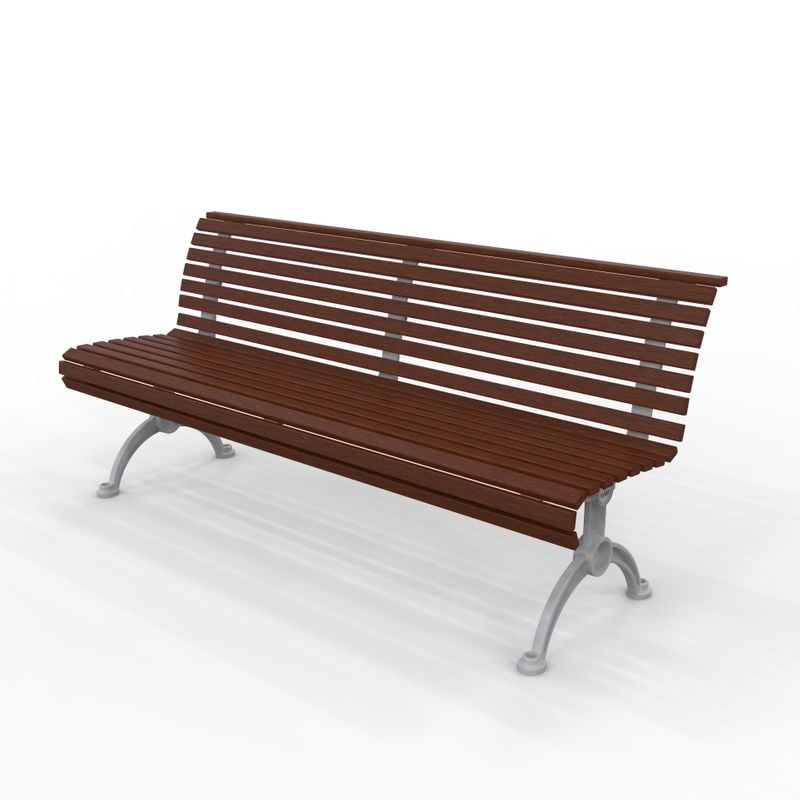

The Madrid DDA Seat is a premium product with a carefully designed cast aluminium (silver powder coated) frame and smooth slender slats. Fully complies with DDA and Australian Standards.

This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made

Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.

Some assembly is required.

Please note that the Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.

See more product & company information in our downloadable resources page here

Downloads

Madrid DDA Seat Arch Leg (Merbau Hardwood) - Spec Sheet (Armrests) (716 Kb)

Madrid DDA Seat Arch Leg (Merbau Hardwood) - Spec Sheet (No Armrests) (719 Kb)

Madrid DDA Seat Arch Leg (Anodised Aluminium) - Spec Sheet (Armrests) (712 Kb)

Madrid DDA Seat Arch Leg (Anodised Aluminium) - Spec Sheet (No Armrests) (712 Kb)

Madrid DDA Seat Arch Leg (Enviroslat Walnut) - Spec Sheet (No Armrests) (330 Kb)

Madrid DDA Seat Arch Leg (Enviroslat Walnut) - Spec Sheet (Armrests) (722 Kb)

Madrid DDA Seat Arch Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (Armrests) (261 Kb)

Madrid DDA Seat Arch Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (No Armrests) (244 Kb)

Madrid DDA Seat Arch Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (No Armrests) (244 Kb)

Madrid DDA Seat Arch Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (Armrests) (244 Kb)

Assembly Drawing - Exploded View (316 Kb)

Product Assembly Guide (775 Kb)

2D (No Arms) - DWG (133 Kb)

3D (No Arms) - DWG (5,317 Kb)

2D (W/Arms) - DWG (144 Kb)

3D (W/Arms) - DWG (5,529 Kb)

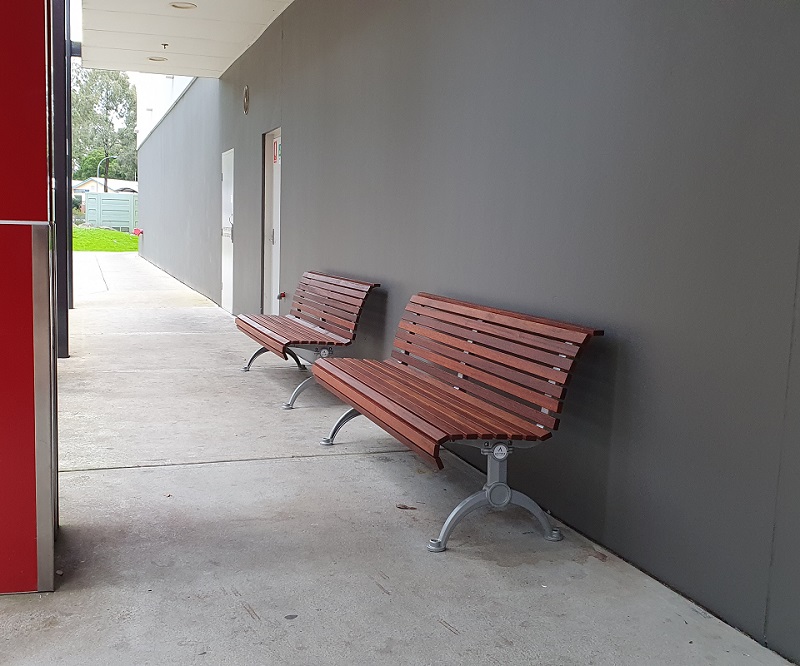

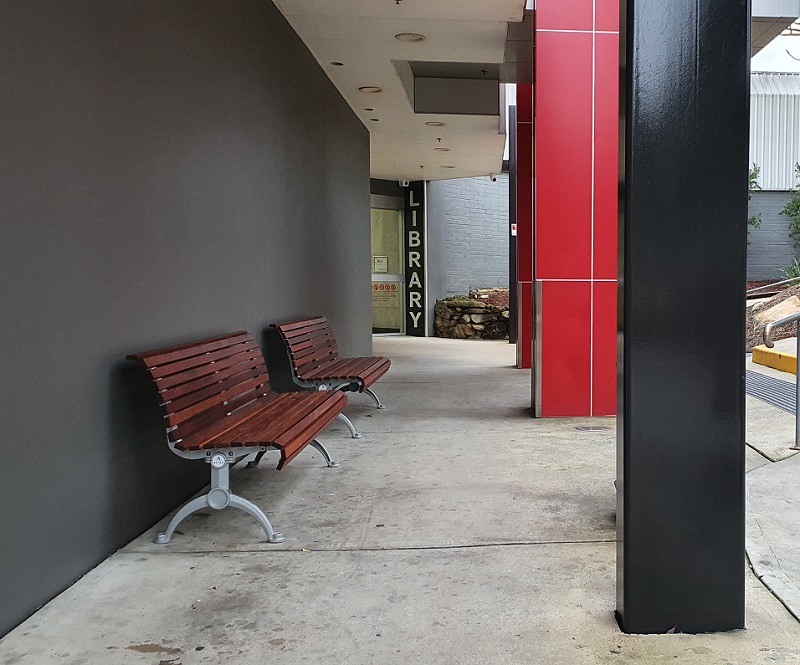

Project News - St Clair Shopping Centre (3,649 Kb)

Specifications

  • Size: 1800(L) x 630(W) x 810(H)mm
  • Seat Height: 450mm
  • Slat Profile: 40(W) x 20(H)mm

Overall Seat Weight:

  • Merbau Hardwood: 41kg
  • Anodised Aluminium: 37kg
  • Envirosalt Walnut: 73kg
  • Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 37kg

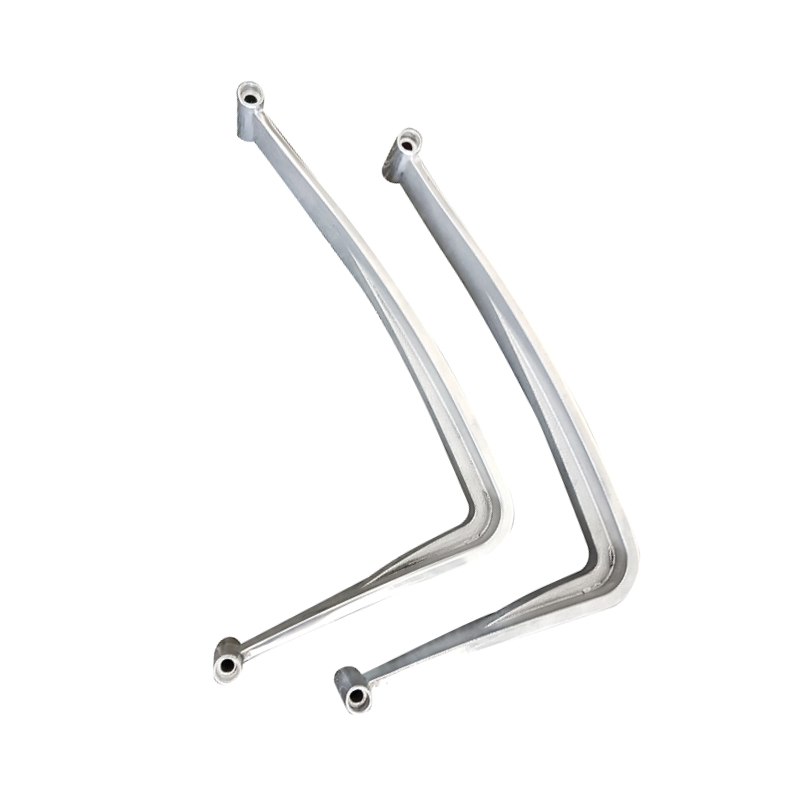

  • Armrest (set of 2): 1.9kg each
