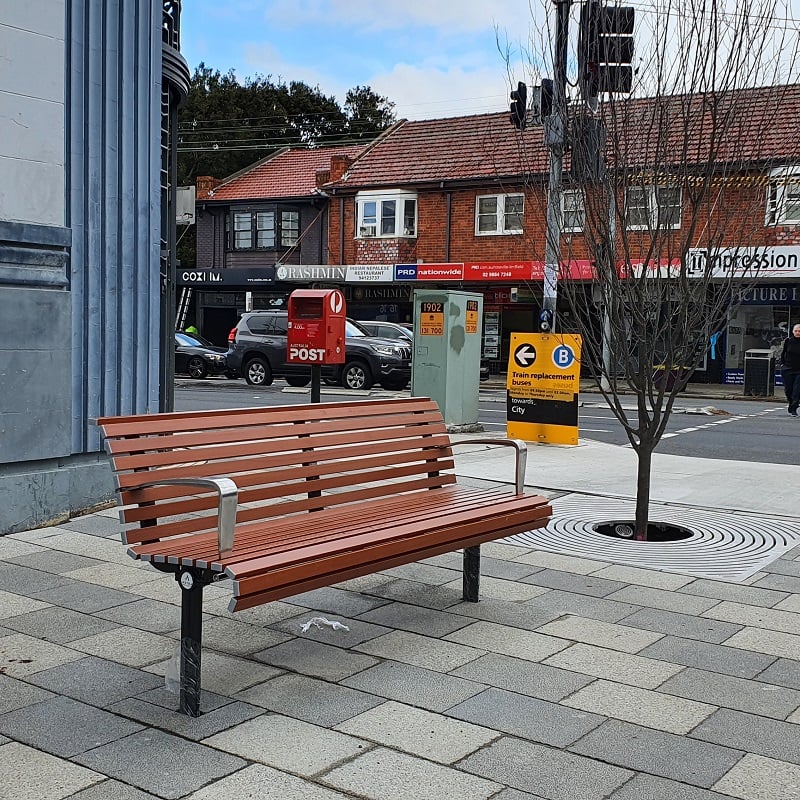

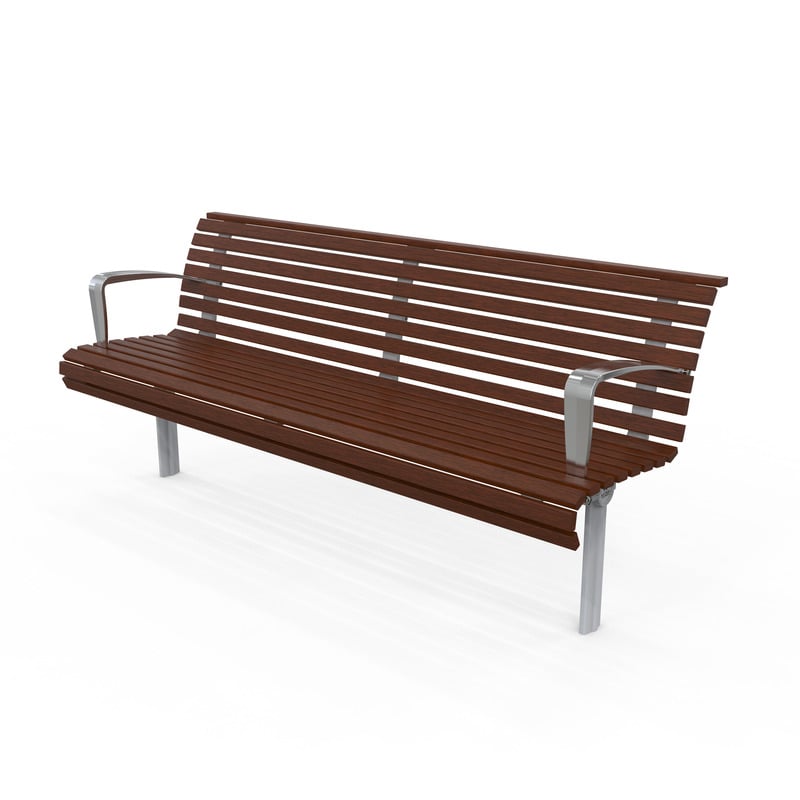

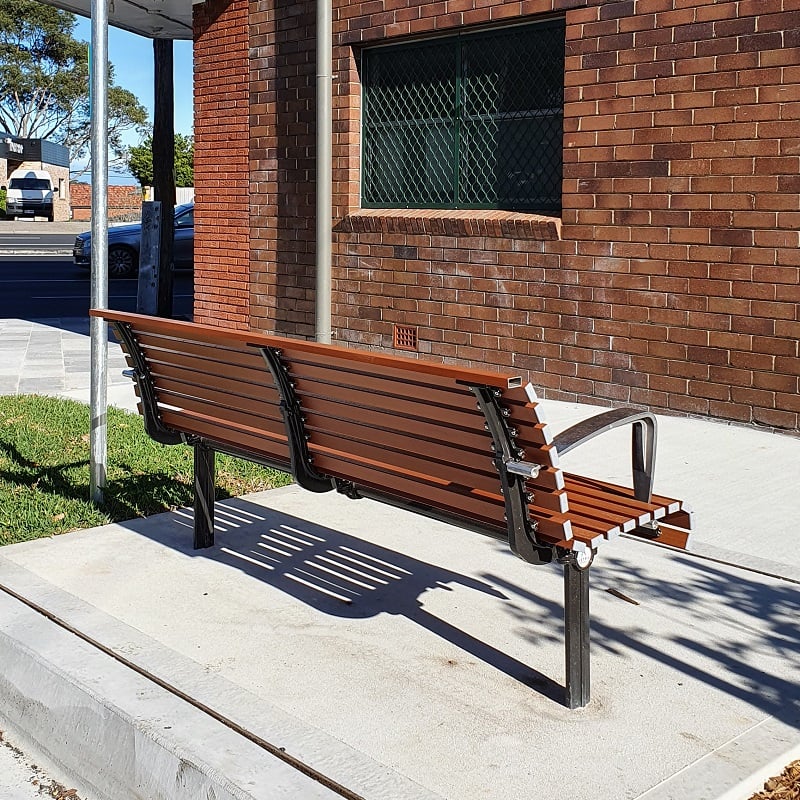

Madrid DDA Seat - Straight In-Ground Leg


Code: 47-AMST18SI-ALAR

Price Range: Premium

Merbau Hardwood
+

Australian Made

100% Designed and manufactured locally.

Recycled Content

The higher the percentage in the triangle, the better.

9

Life Expectancy

A conservative indication of the minimum expected life of the product.

Repurposing

End of-life repurposing is expected to be possible.

Carbon Star Ranking

The higher the number of stars the lower the carbon content in the product.

Carbon Content Score

The score is only shown to logged in users.

Description

The Madrid DDA Seat is a premium product with a carefully designed cast aluminium (silver powder coated) frame and smooth slender slats. Fully complies with DDA and Australian Standards.

This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made

Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.

Some assembly is required.

Please note that the Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.

See more product & company information in our downloadable resources page here

Downloads

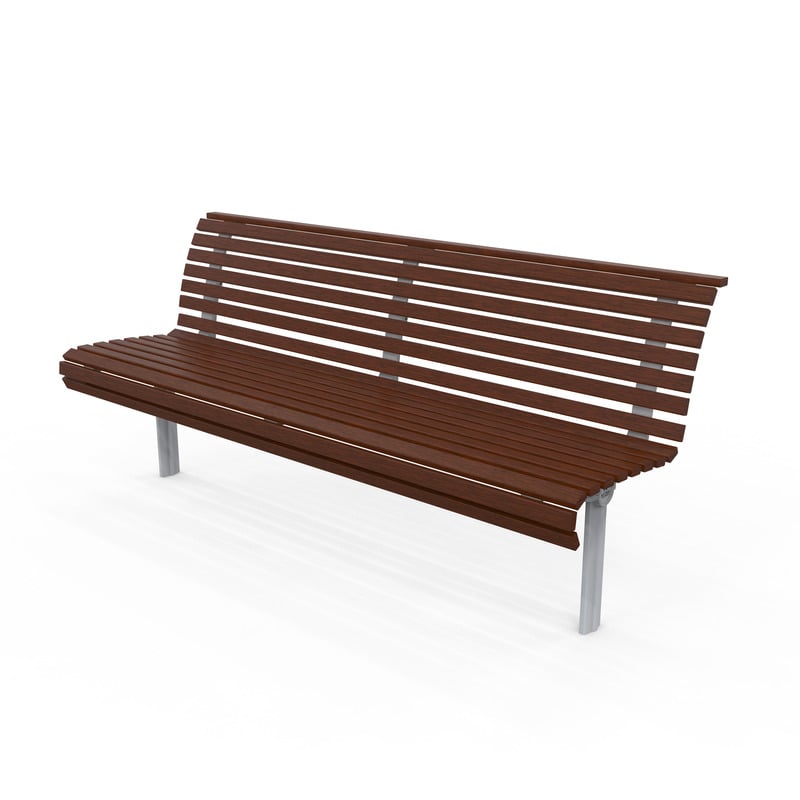

Madrid DDA Seat - Straight In-Ground Leg (Merbau) - Spec Sheet (Armrest) (255 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Anodised Aluminium) - Spec Sheet (Armrest) (241 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Anodised Aluminium) - Spec Sheet (No Armrest) (240 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Enviroslat Walnut) - Spec Sheet (Armrest) (243 Kb)

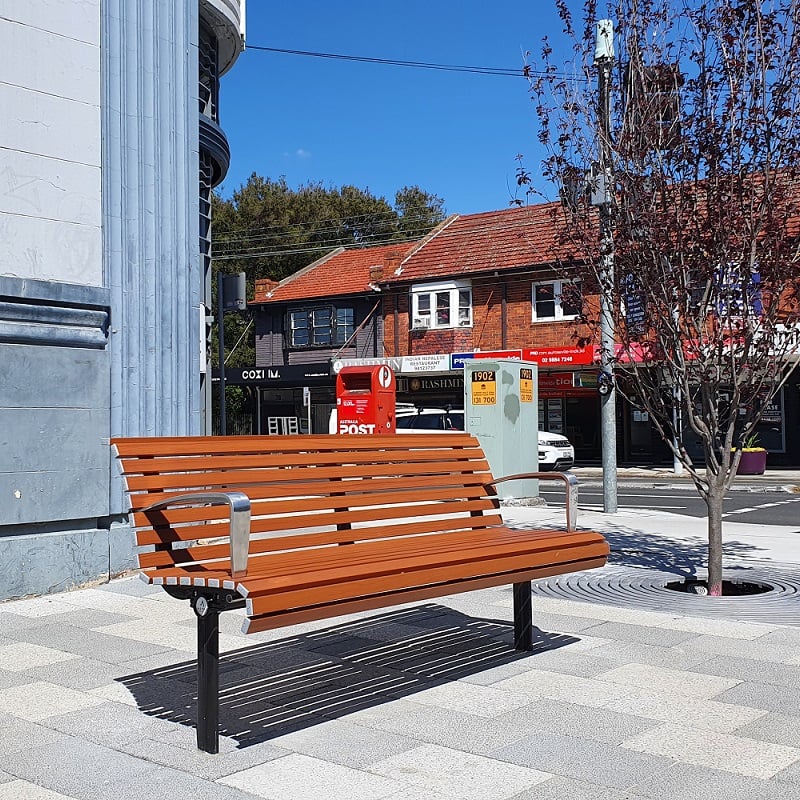

Madrid DDA Seat - Straight In-Ground Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (Armrest) (192 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (No Armrest) (245 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (Armrest) (190 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (No Armrest) (189 Kb)

Assembly Drawing - Exploded View (379 Kb)

3D (Arms) - DWG (4,007 Kb)

2D (Arms) - DWG (138 Kb)

2D (No Arms) - DWG (119 Kb)

3D (No Arms) - DWG (3,801 Kb)

Projects News - Allan Lane Shops (3,208 Kb)

Project News - Roseville Station (1,176 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Merbau) - Spec Sheet (No Armrest) (256 Kb)

Madrid DDA Seat - Straight In-Ground Leg (Enviroslat Walnut) - Spec Sheet (No Armrest) (242 Kb)

Specifications

  • Size: 1800(L) x 630(W) x 810(H)mm - Recommended Install Height
  • Overall Height: 1110(H)mm
  • Seat Height: 450mm
  • Slat Profile: 40(W) x 20(H)mm

Overall Seat Weight

  • Merbau Hardwood: 43kg
  • Anodised Aluminium: 39kg
  • Enviroslat Walnut: 75kg
  • Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 39kg
  • Armrest (set of 2): 1.9kg each
