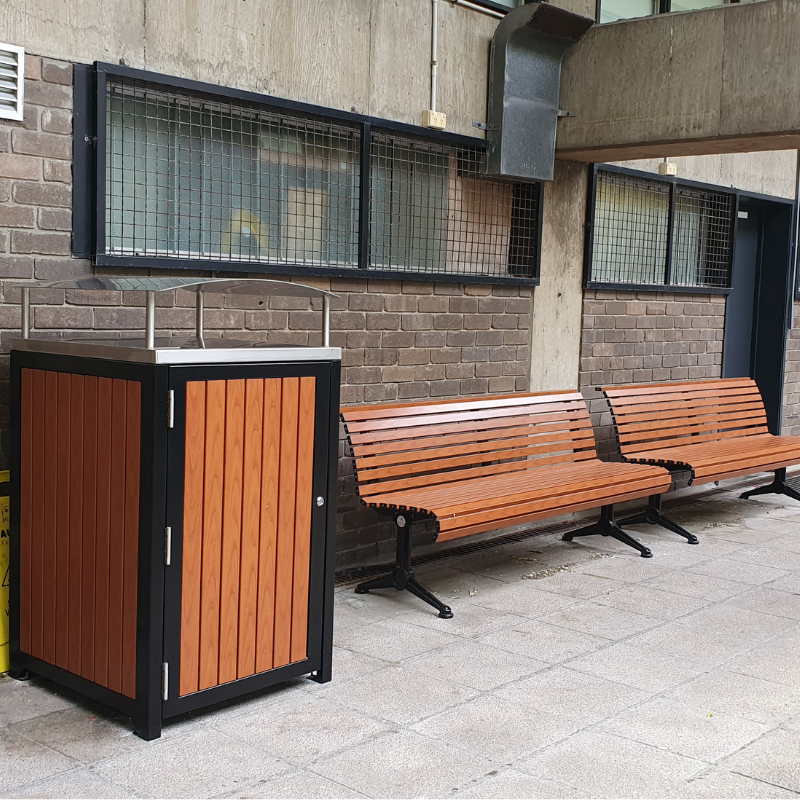

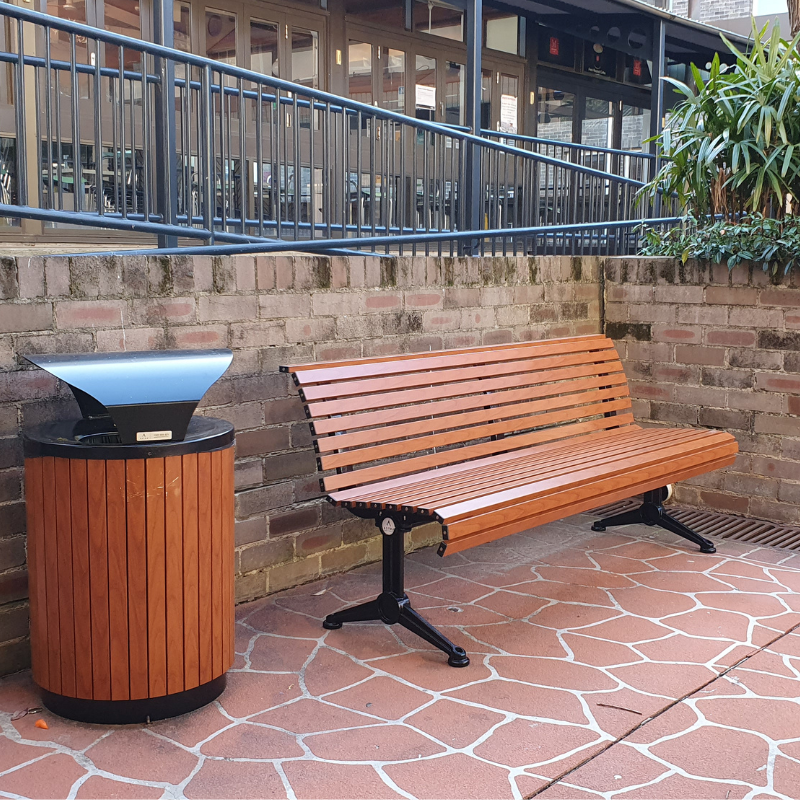

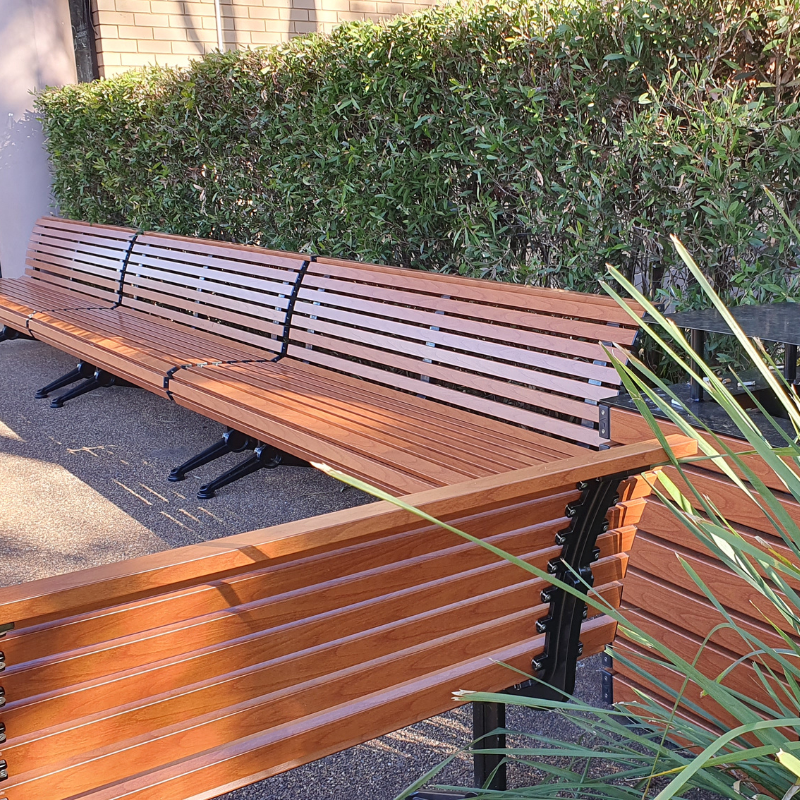

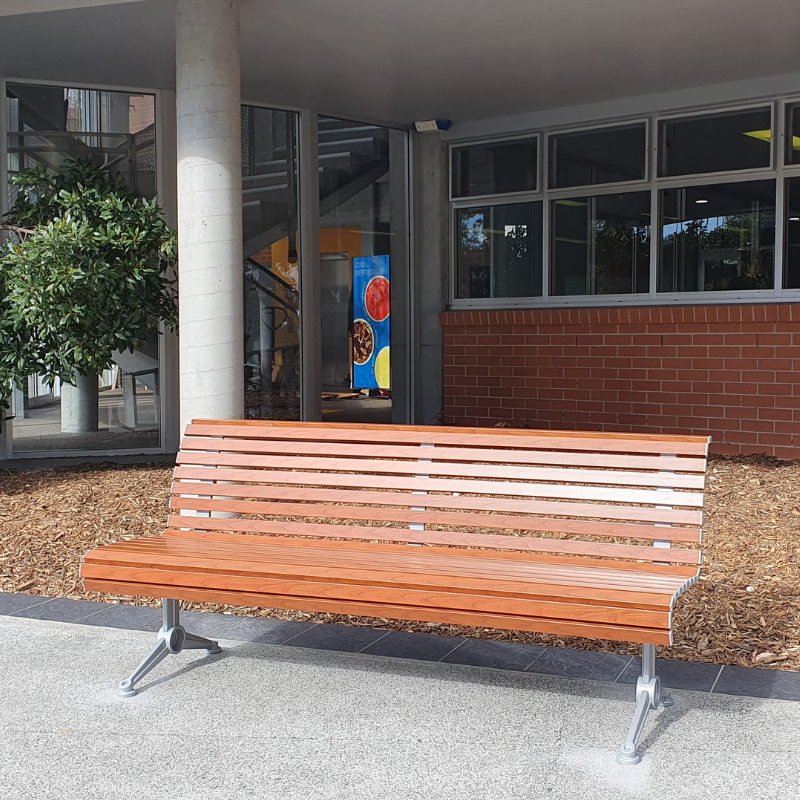

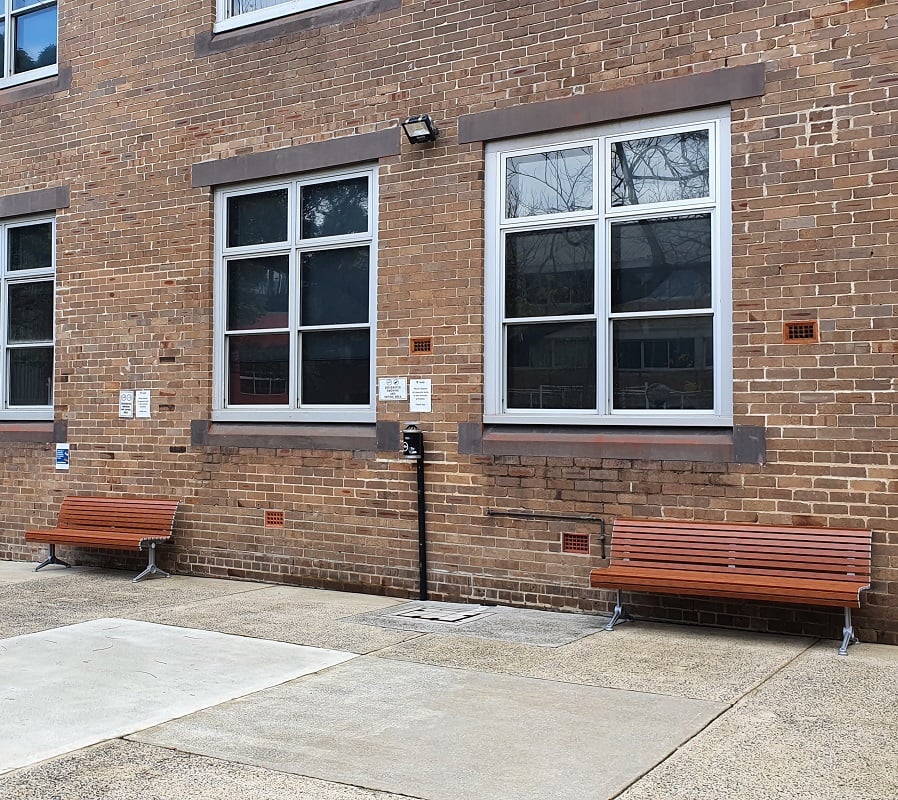

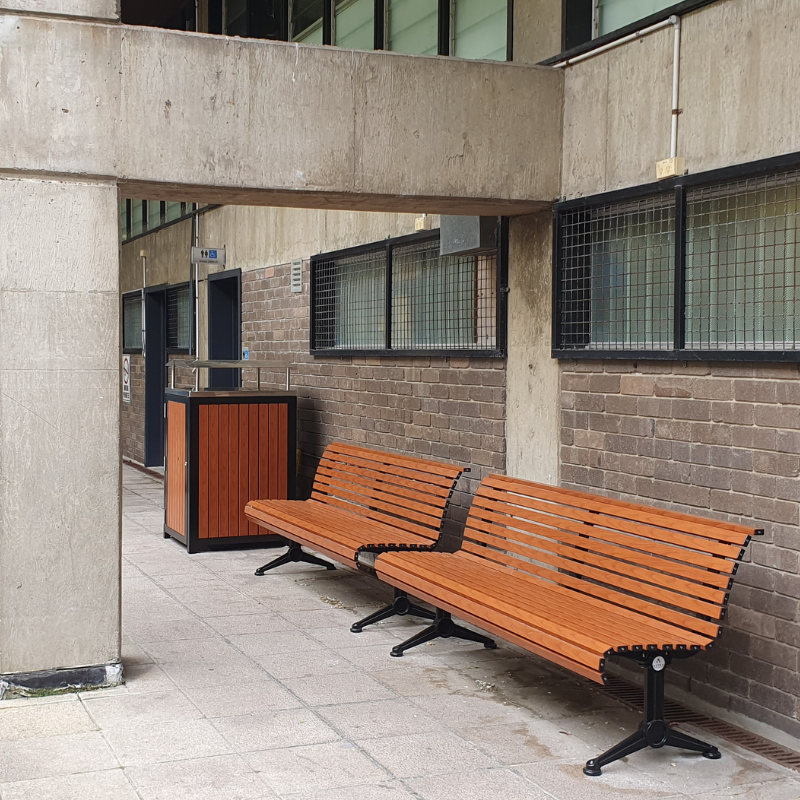

Madrid DDA Seat - Splay Leg


Code: 47-AMST18-ALAR

Price Range: Premium

Merbau Hardwood
+

Australian Made

100% Designed and manufactured locally.

Recycled Content

The higher the percentage in the triangle, the better.

9

Life Expectancy

A conservative indication of the minimum expected life of the product.

Repurposing

End of-life repurposing is expected to be possible.

Carbon Star Ranking

The higher the number of stars the lower the carbon content in the product.

Carbon Content Score

The score is only shown to logged in users.

Description

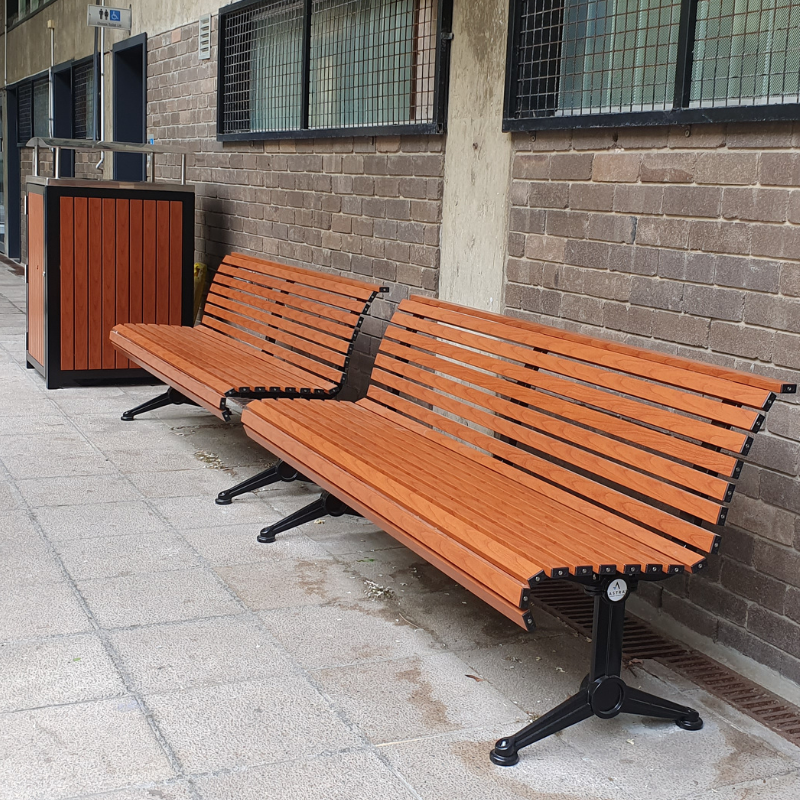

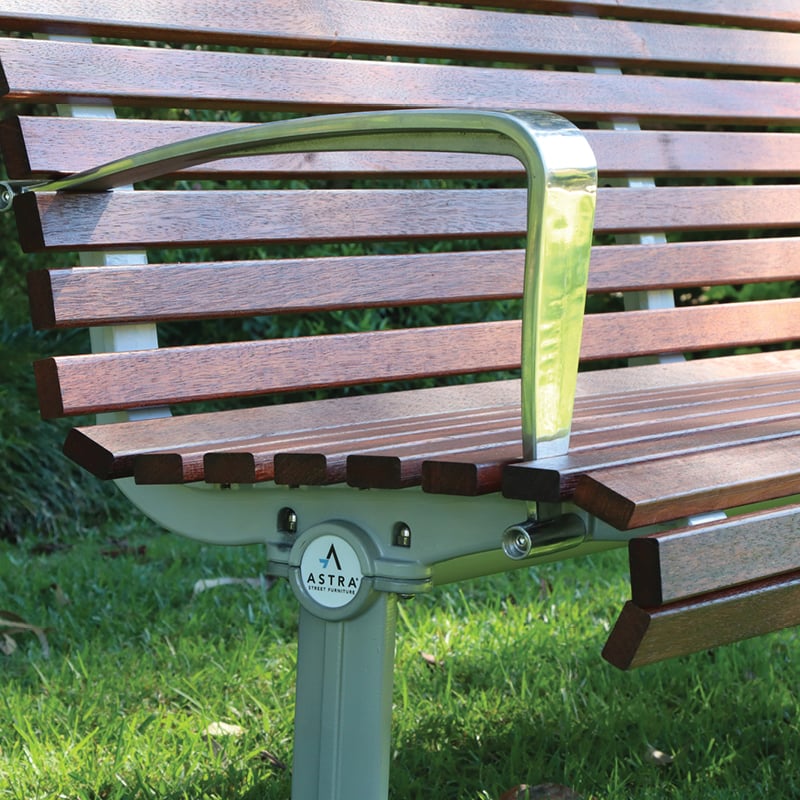

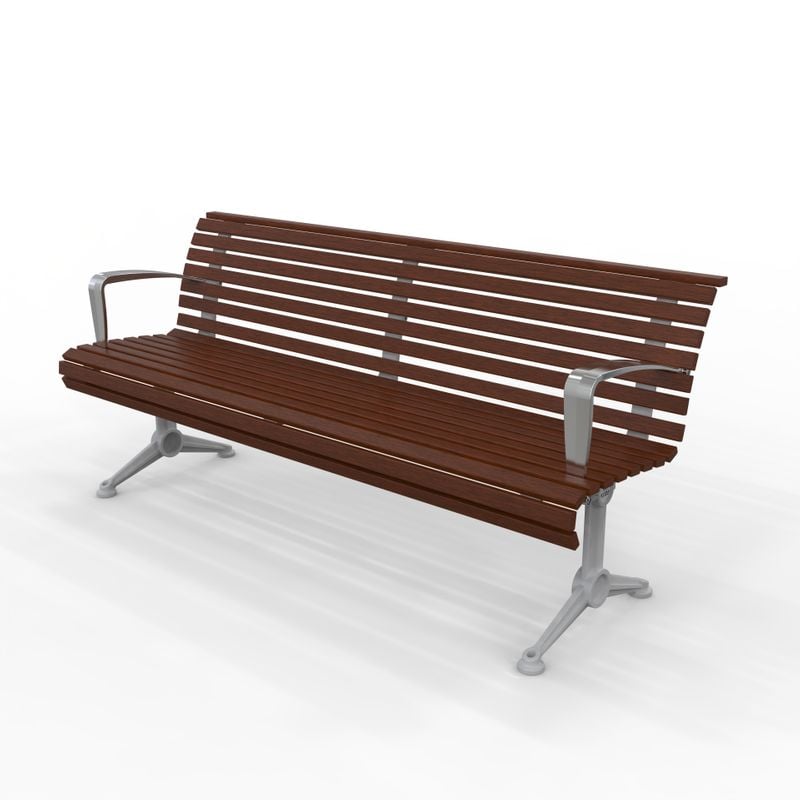

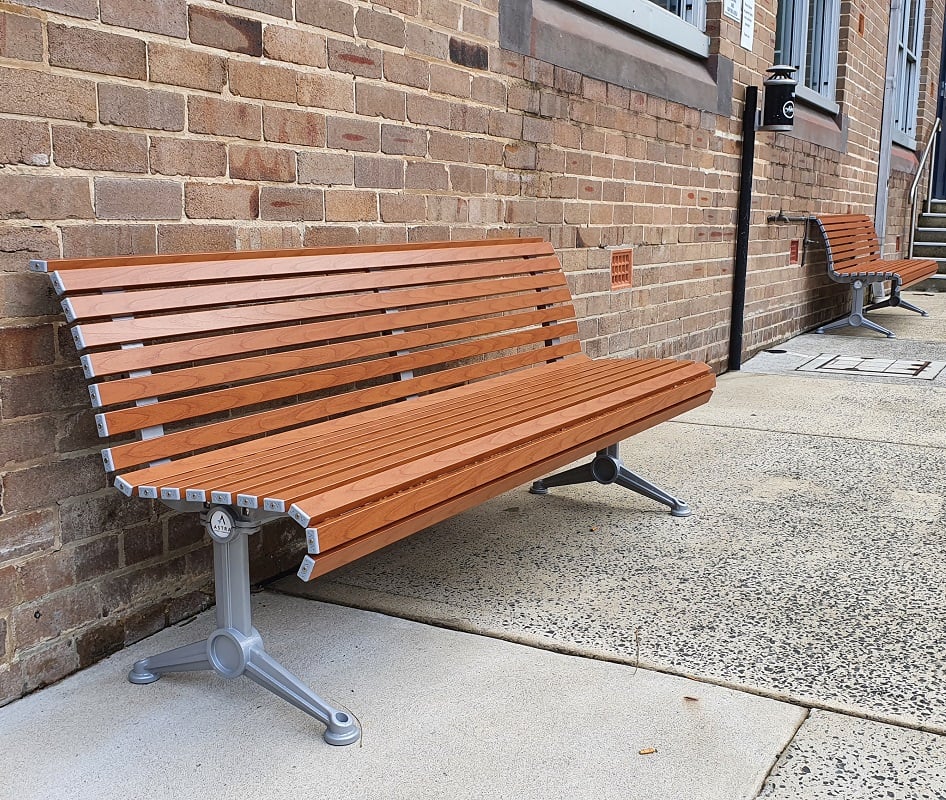

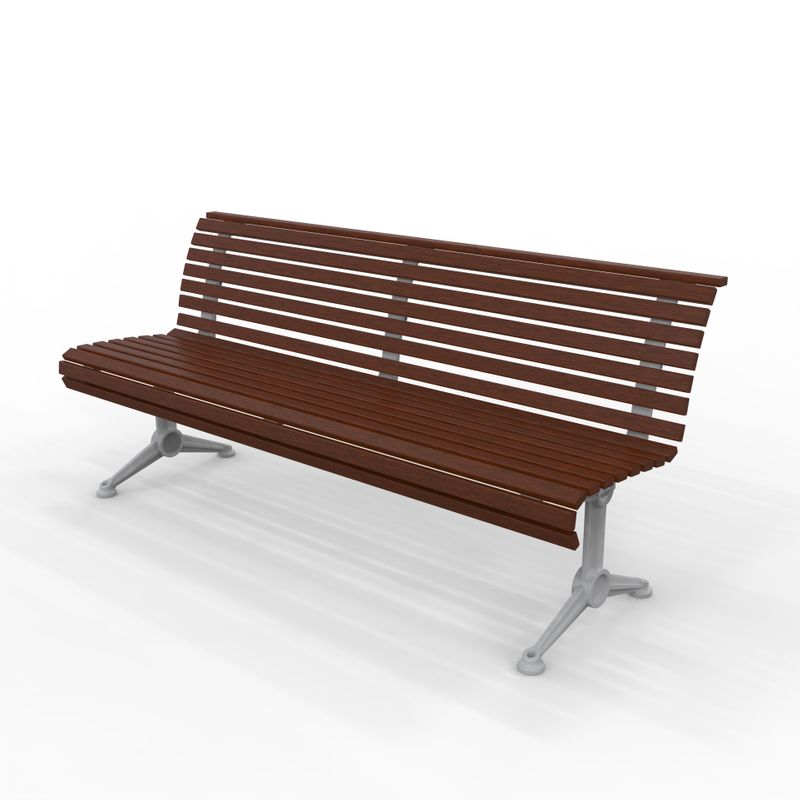

The Madrid DDA Seat is a premium product with a carefully designed cast aluminium (silver powder coated) frame and smooth slender slats. Fully complies with DDA and Australian Standards.

This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made

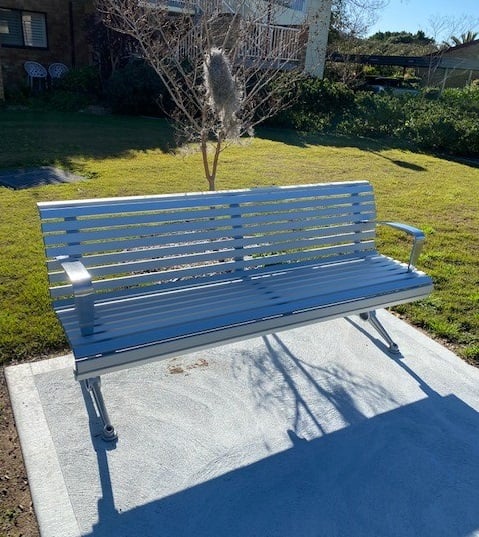

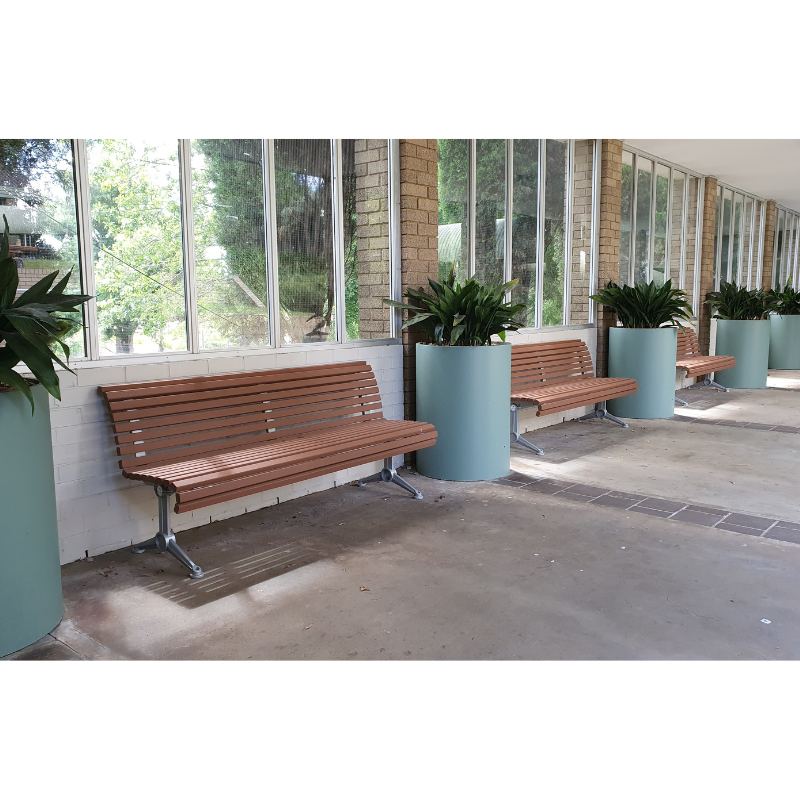

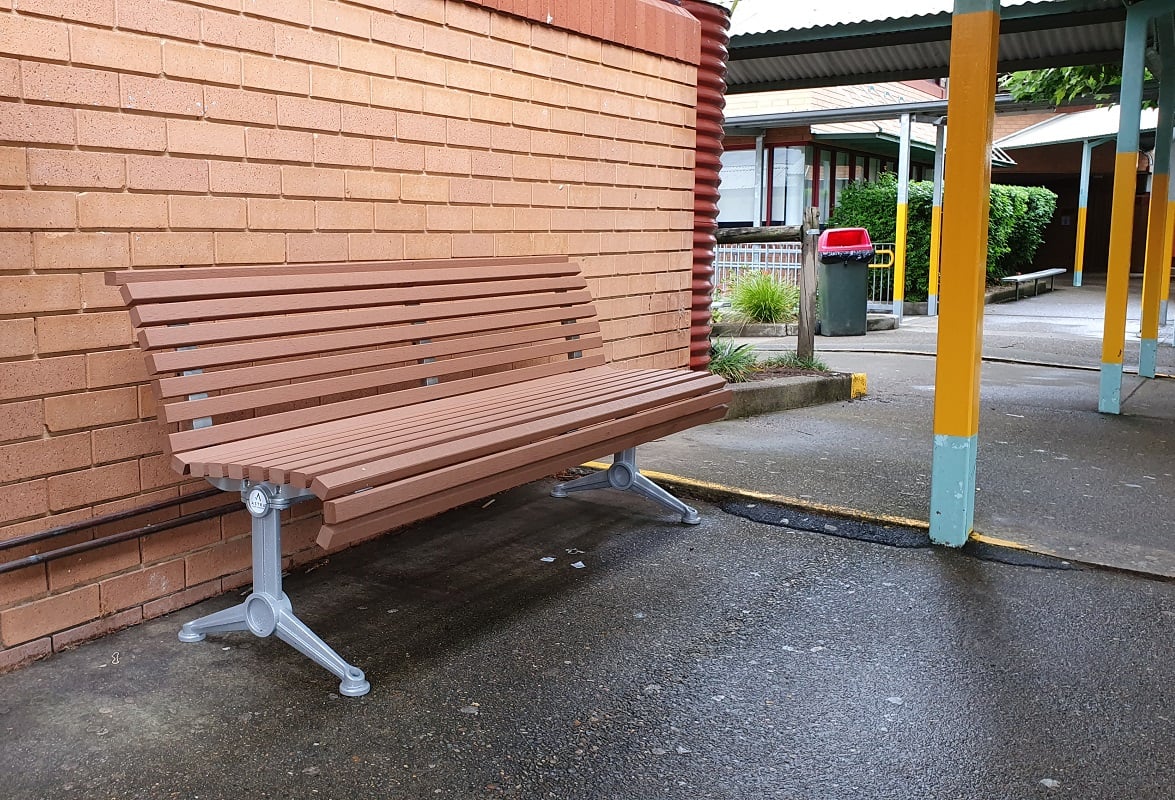

Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.

Some assembly is required.

Please note that the Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.

See more product & company information in our downloadable resources page here

Downloads

Madrid DDA Seat Splay Leg (Merbau) - Spec Sheet (Armrests) (250 Kb)

Madrid DDA Seat Splay Leg (Merbau) - Spec Sheet (No Armrests) (249 Kb)

Madrid DDA Seat Splay Leg (Aluminium) - Spec Sheet (Armrests) (242 Kb)

Madrid DDA Seat Splay Leg (Aluminium) - Spec Sheet (No Armrests) (240 Kb)

Madrid DDA Seat Splay Leg (Enviroslat Walnut) - Spec Sheet (Armrests) (246 Kb)

Madrid DDA Seat Splay Leg (Enviroslat Walnut) - Spec Sheet (No Armrests) (242 Kb)

Madrid DDA Seat Splay Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (Armrests) (249 Kb)

Madrid DDA Seat Splay Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (No Armrests) (247 Kb)

Madrid DDA Seat Splay Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (Armrests) (244 Kb)

Madrid DDA Seat Splay Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (No Armrests) (242 Kb)

Assembly Drawing - Exploded View (381 Kb)

2D (No Arms) - DWG (136 Kb)

3D (No Arms) - DWG (4,918 Kb)

2D (W/Arms) - DWG (154 Kb)

3D (W/Arms) - DWG (5,130 Kb)

Project News - St Clair Shopping Centre (3,649 Kb)

Specifications

  • Size: 1800(L) x 630(W) x 810(H)mm
  • Seat Height: 450mm
  • Slat Profile: 40(W) x 20(H)mm

Overall Seat Weight:

  • Merbau Hardwood: 43kg
  • Anodised Aluminium: 39kg
  • Envirosalt Walnut: 75kg
  • Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 39kg
  • Armrest (set of 2): 1.9kg each
