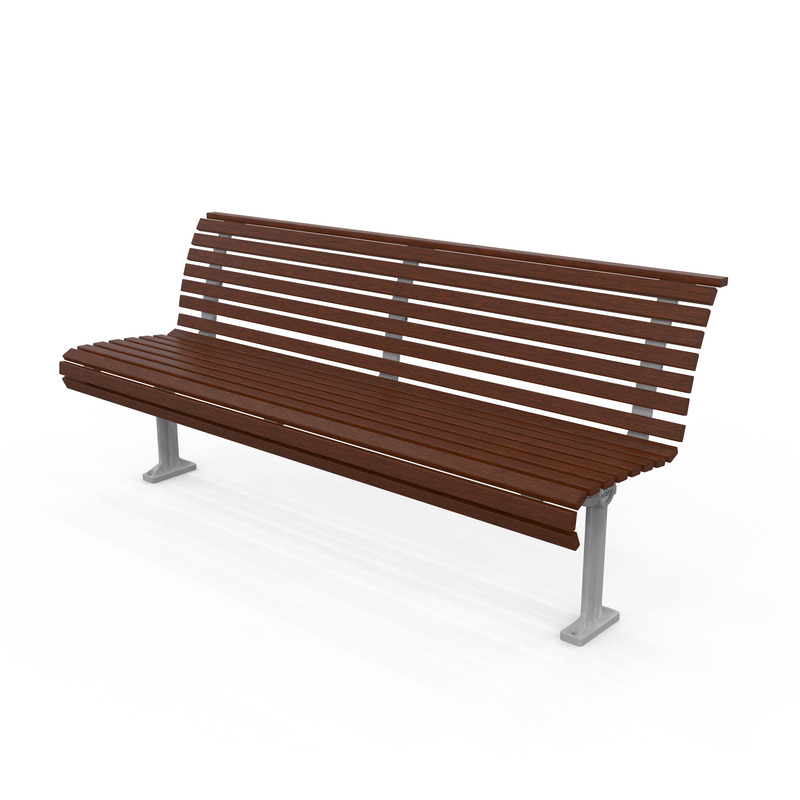

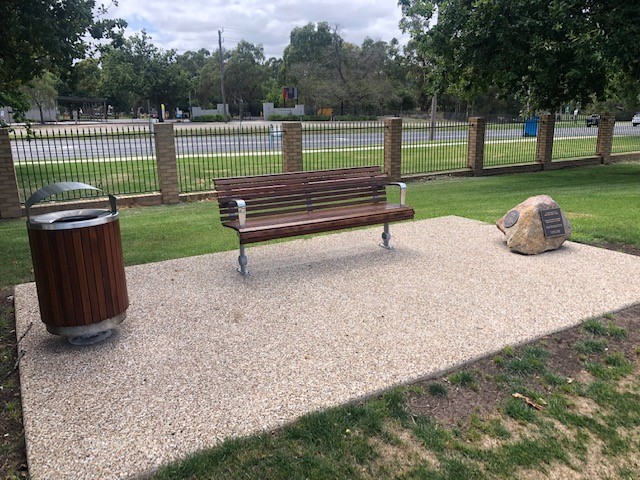

Madrid DDA Seat - Straight Base Plate Leg

Code: 47-AMST18SB

Merbau Hardwood
  • Merbau Hardwood
  • Anodised Aluminium
  • Enviroslat Walnut
  • Wood Grain Aluminium - Western Red Cedar
  • Wood Grain Aluminium - Blonde Oak
  • Yes
  • No
+

Description

The Madrid DDA Seat is a premium product with a carefully designed cast aluminium (silver powder coated) frame and smooth slender slats. Fully complies with DDA and Australian Standards.

This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made

Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.

Some assembly is required.

Please note that the Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.


See more product & company information in our downloadable resources page here

Downloads

Madrid DDA Seat - Straight Base Plate Leg (Merbau) - Spec Sheet (Armrest) (252 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Merbau) - Spec Sheet (No Armrest) (252 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Anodised Aluminium) - Spec Sheet (Armrest) (240 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Anodised Aluminium) - Spec Sheet (No Armrest) (239 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Enviroslat Walnut) - Spec Sheet (Armrest) (241 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Enviroslat Walnut) - Spec Sheet (No Armrest) (241 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (Armrest) (246 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Wood Grain Ali - Western Red Cedar) - Spec Sheet (No Armrest) (244 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (Armrest) (244 Kb)

Madrid DDA Seat - Straight Base Plate Leg (Wood Grain Ali - Blonde Oak) - Spec Sheet (No Armrest) (243 Kb)

Assembly Drawing - Exploded View (332 Kb)

2D (Arms) - DWG (139 Kb)

2D (No Arms) - DWG (121 Kb)

3D (Arms) - DWG (4,159 Kb)

3D (No Arms) - DWG (3,943 Kb)

Specifications

  • Size: 1800(L) x 630(W) x 810(H)mm
  • Seat Height: 450mm
  • Slat Profile: 40(W) x 20(H)mm

Overall Seat Weight

  • Merbau Hardwood: 43kg
  • Anodised Aluminium: 39kg
  • Enviroslat Walnut: 75kg
  • Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 39kg

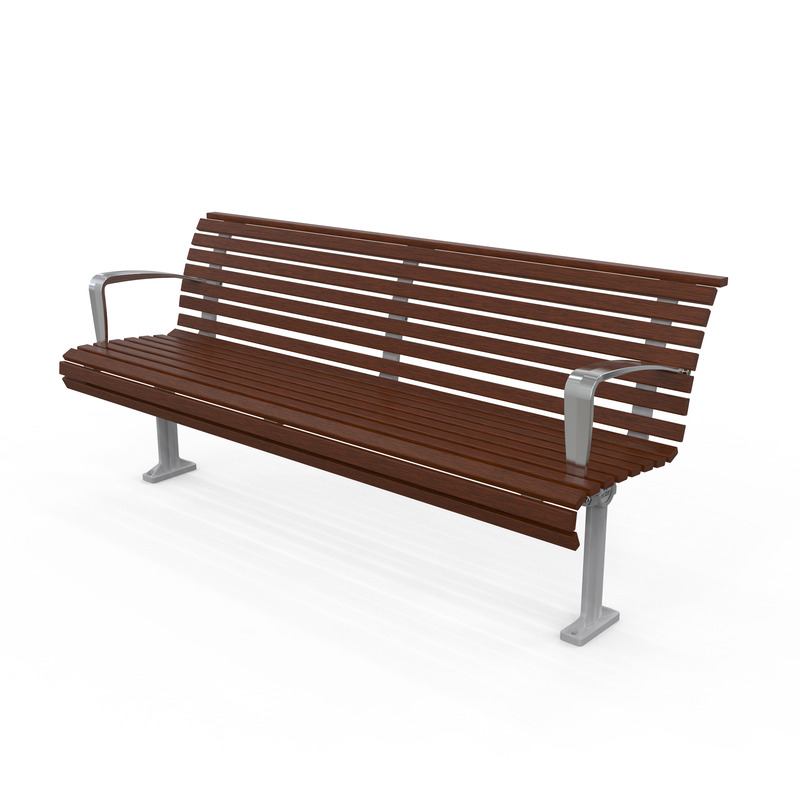

  • Armrest (set of 2): 1.9kg each
