Full Rear Screen for Manchester Aluminium Skillion Shelter


Code: 49-MASRFS84-MN

Price:
Powdercoated Monument Aluminium Slats
+ −
Add to Enquiry Fast Price Request

Australian Made

100% Designed and manufactured locally.

Recycled Content

The higher the percentage in the triangle, the better.

9

Life Expectancy

A conservative indication of the minimum expected life of the product.

Carbon Star Ranking

The higher the number of stars the lower the carbon content in the product.

Carbon Content Score

The score is only shown to logged in Architect / Designer / Specifier clients

Description

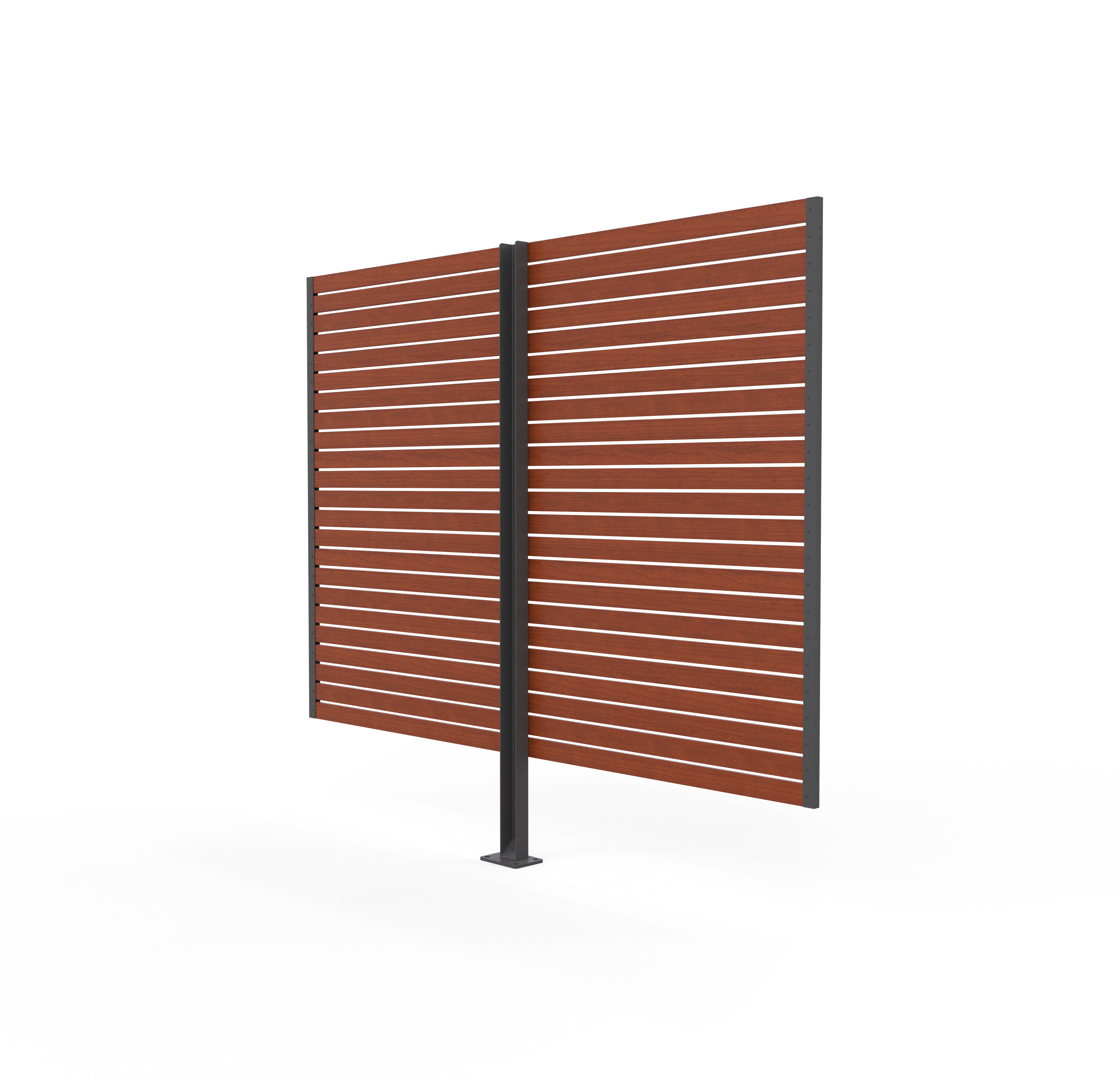

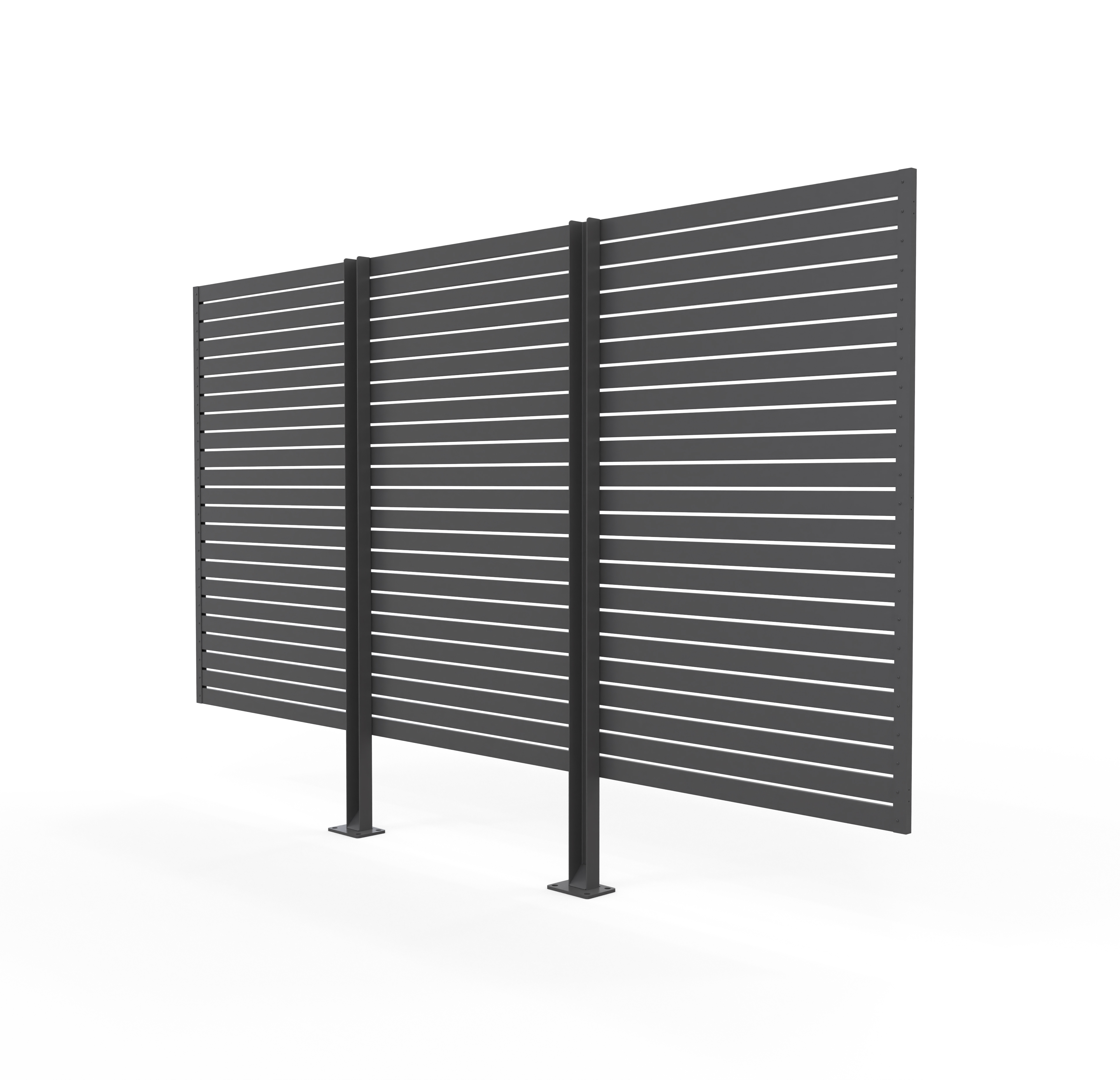

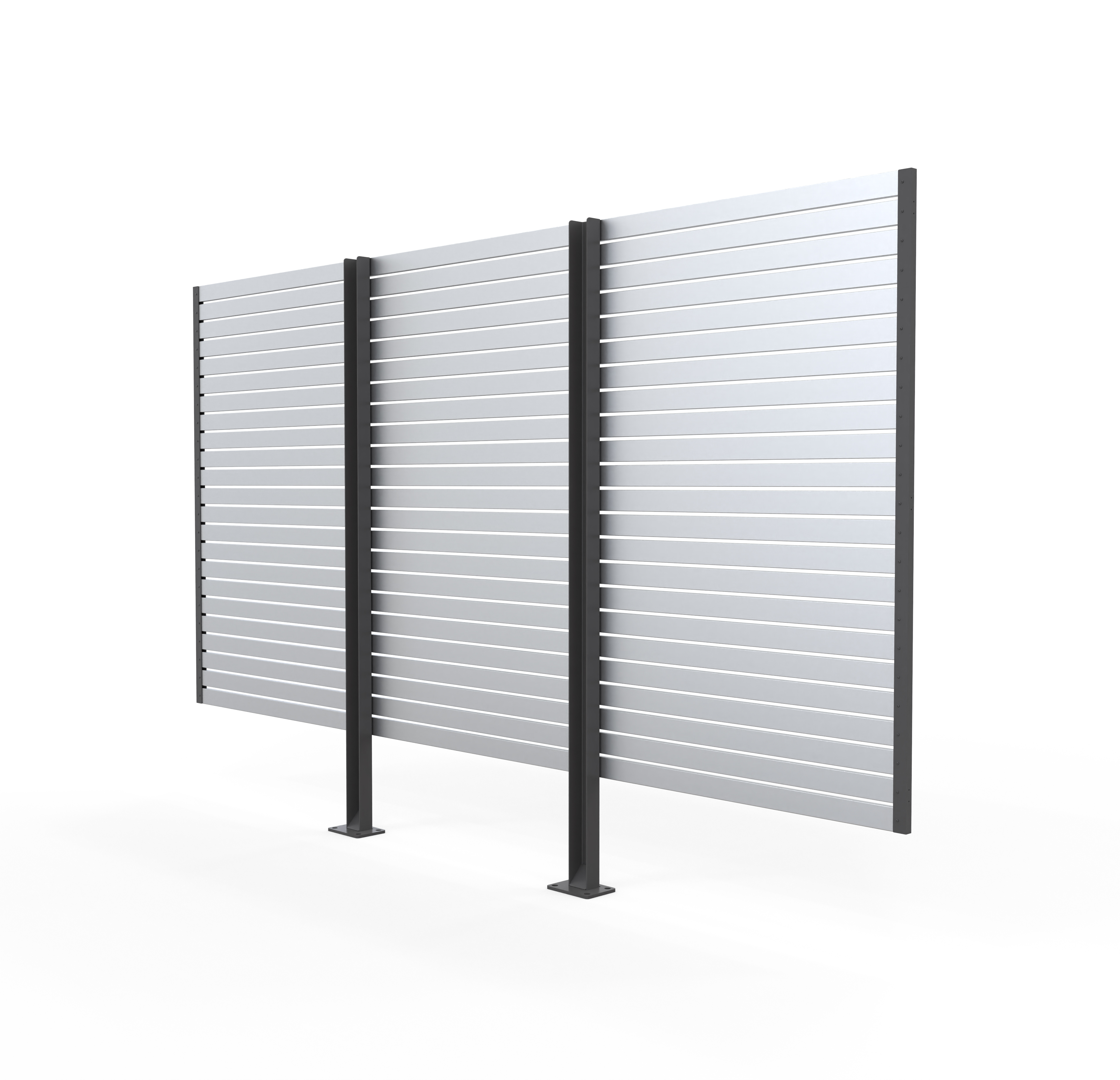

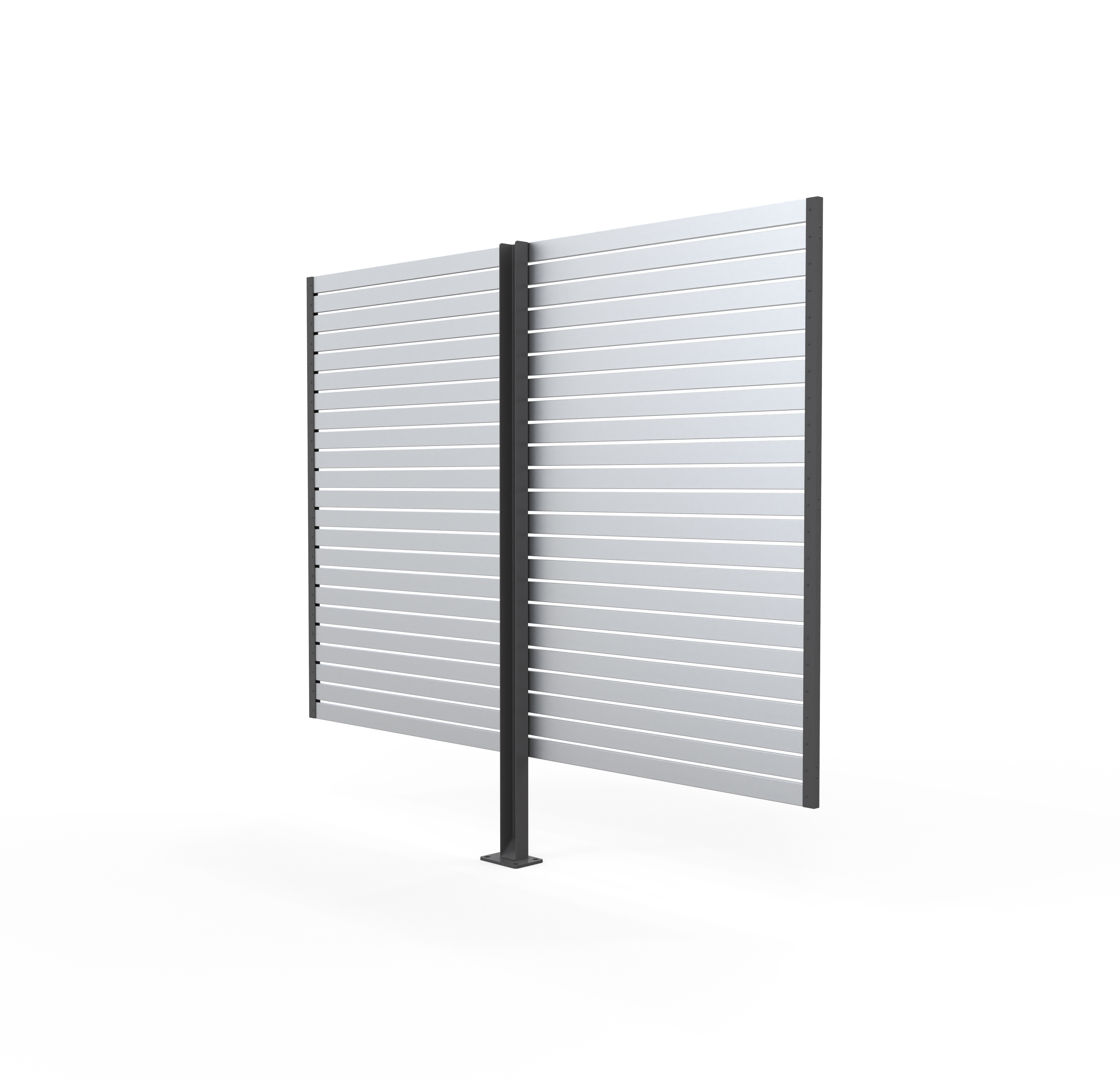

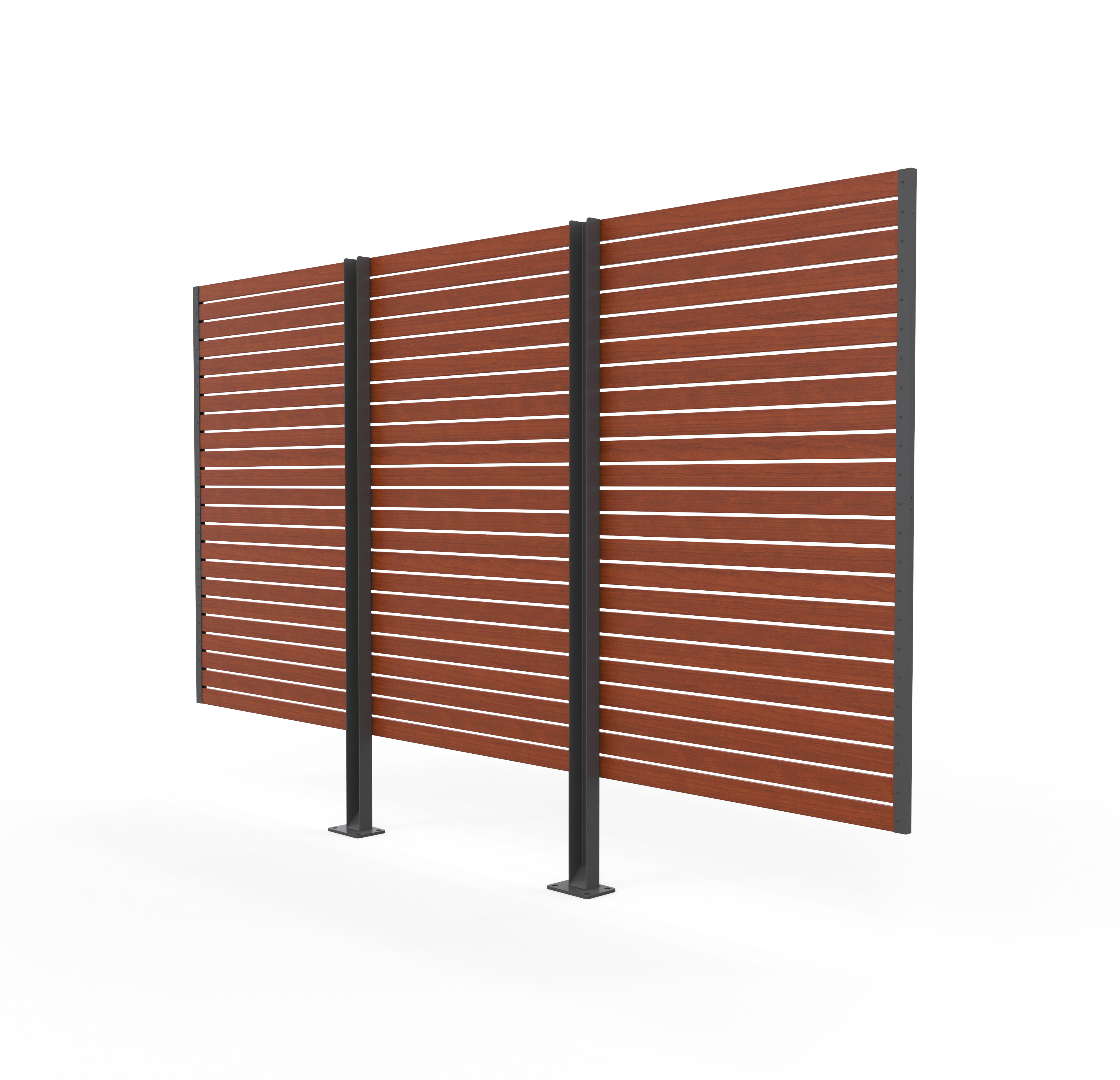

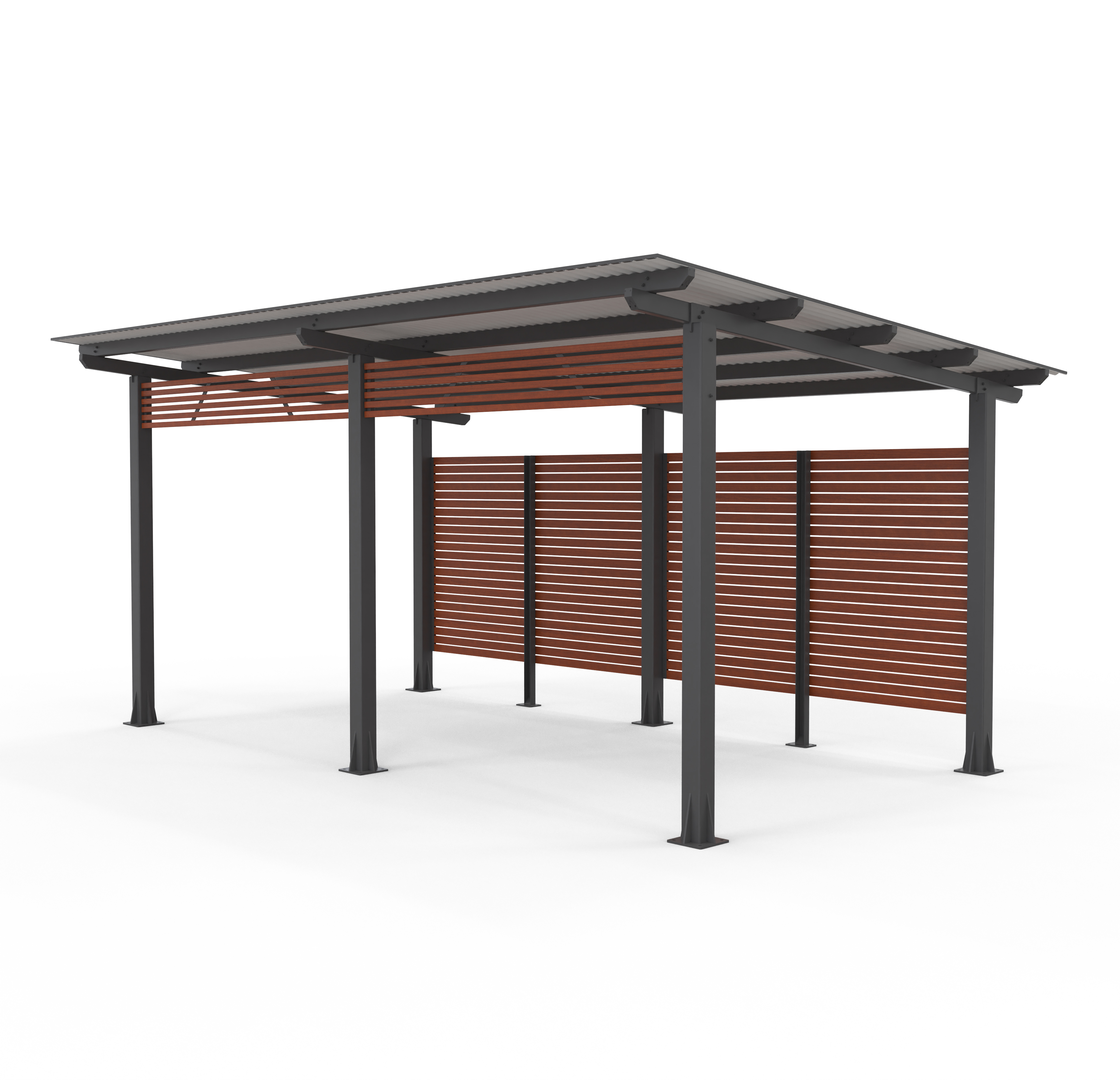

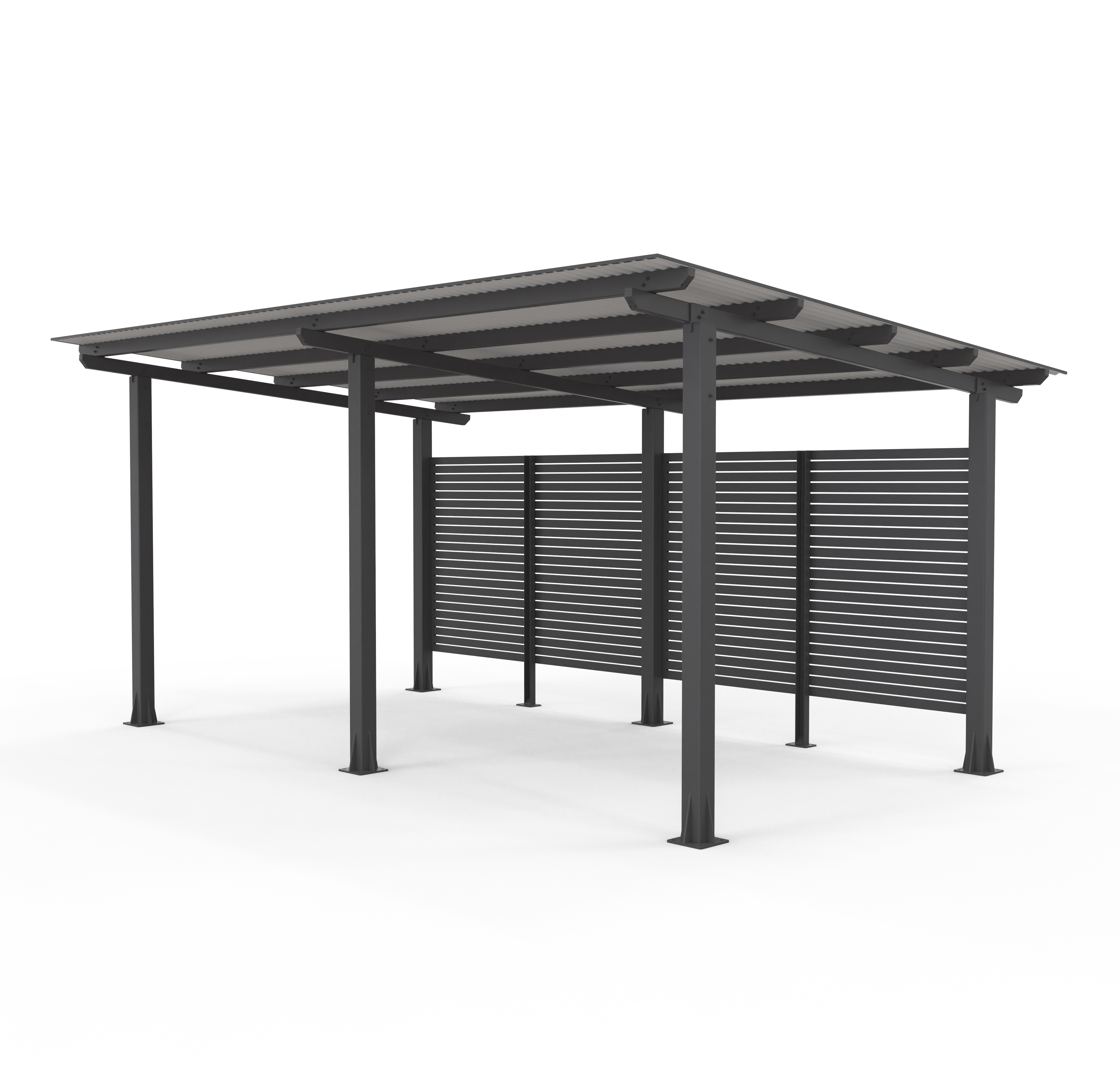

The Manchester Aluminium Skillion Shelter Full Rear Screen is a slatted aluminium screen designed to fit the Aluminium Manchester Skillion Shelter range, adding a layer of privacy and wind/weather protection to one side of the shelter. Available in a Monument finish or a Western Red Cedar woodgrain aluminium finish.

This screen is a separate, standalone product — it is not bundled with the shelter and is purchased in addition to it. Sized to match the width of the corresponding Aluminium Manchester Skillion Shelter (3m, 4m, 6m, 8m or 12m). Wider shelters are fitted with multiple screen panels to span the full rear width — refer to Specifications for the panel quantity required per size.

Downloads

Rear Full Screen for Manchester Skillion Shelter - All Sizes (484 Kb)

Rear Full Screen Spec Sheet (239 Kb)

Specifications

Sizes

3m shelter: 3630(L) × 130(W) × 2065(H)mm
4m shelter: 3410(L) × 130(W) × 2065(H)mm
6m shelter: 5300(L) × 130(W) × 2065(H)mm (x2 3m screens)
8m shelter: 7260(L) × 130(W) × 2065(H)mm (x2 4m screens)
12m shelter: 10,900(L) × 130(W) × 2065(H)mm (x3 4m screens)


Weights

  • 3m Aluminium Manchester Shelter Rear Screen
    • Aluminium: 7.4 kg
    • Extruded aluminium: 45.5 kg


  • 4m Aluminium Manchester Shelter Rear Screen
    • Aluminium: 12.1 kg
    • Extruded aluminium: 64.2 kg
  • 6m Aluminium Manchester Shelter Rear Screens
    • Aluminium: 14.8 kg
    • Extruded aluminium: 100 kg
  • 8m Aluminium Manchester Shelter Rear Screens
    • Aluminium: 24.2 kg
    • Extruded aluminium: 136.8 kg
  • 12m Aluminium Manchester Shelter Rear Screens
    • Aluminium: 36.3 kg
    • Extruded aluminium: 205.2 kg
