London DDA Setting with Seats - Straight Subsurface Mount Leg


Code: 49-ALTBO18SSM-SS

Price Range: Mid Tier

Wood Grain Aluminium - Blonde Oak
+

Australian Made

100% Designed and manufactured locally.

Recycled Content

The higher the percentage in the triangle, the better.

14

Life Expectancy

A conservative indication of the minimum expected life of the product.

Repurposing

End of-life repurposing is expected to be possible.

Carbon Star Ranking

The higher the number of stars the lower the carbon content in the product.

Carbon Content Score

The score is only shown to logged in users.

Description

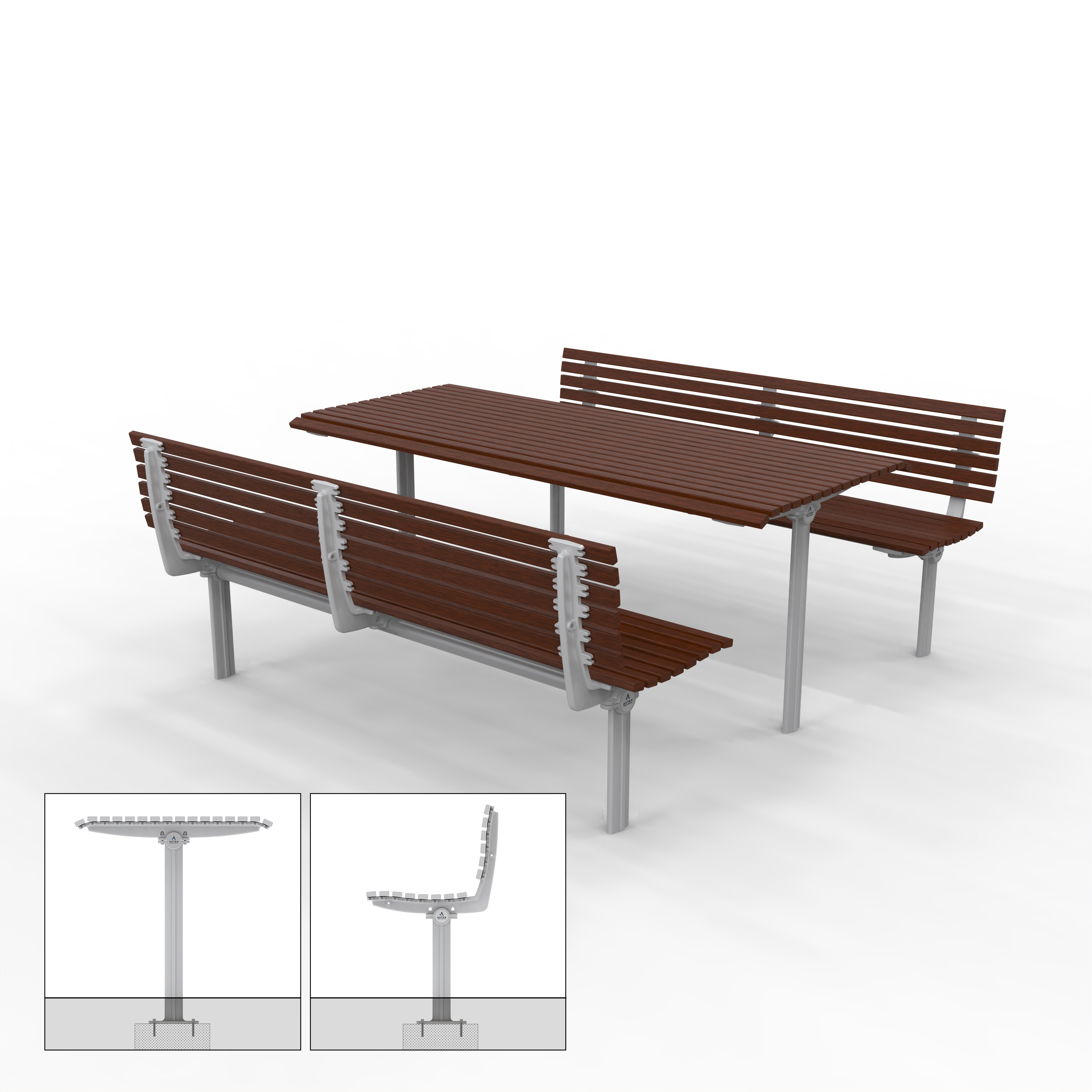

The London 3-piece picnic setting with seats is a premium set of street furniture for schools, universities, council parks, shopping malls, apartment common areas, streetscapes, pocket parks, hospitals and aged care villages. The heavy duty frame is manufactured with powder coated cast aluminium.

This Product is proudly designed, manufactured and assembled here in Australia - 100% Australian Made

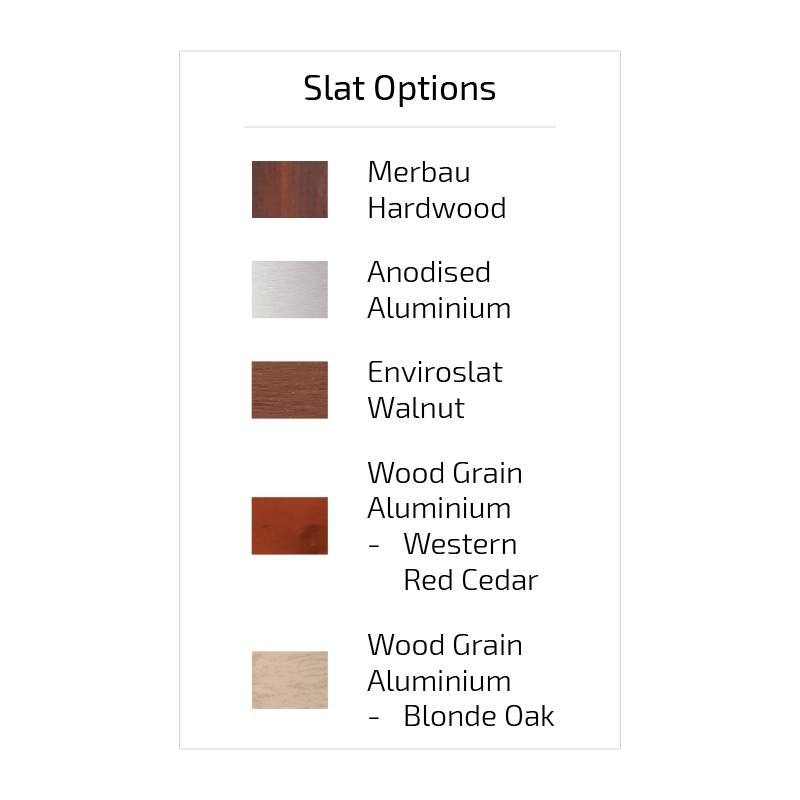

Standard slat options include Merbau Hardwood, Anodised Aluminium, Enviroslat Walnut, Wood Grain Aluminium - Western Red Cedar and Wood Grain Aluminium - Blonde Oak. Custom slats are available on request – please enquire.

Please Note: Assembly Required

See more product & company information in our downloadable resources page here

Downloads

London DDA Setting with Seats - Straight Subsurface Mount Leg (Merbau Hardwood) - Spec Sheet (250 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg (Anodised Aluminium) - Spec Sheet (247 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg (Enviroslat Walnut) - Spec Sheet (246 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg (WGA Western Red Cedar) - Spec Sheet (251 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg (WGA Blonde Oak) - Spec Sheet (250 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg - Assembly Guide (669 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg - 2D DWG (415 Kb)

London DDA Setting with Seats - Straight Subsurface Mount Leg - 3D DWG (12,541 Kb)

Specifications

  • Table Size: 1800(L) x 800(W) x 740(H)mm
  • Seat Size: 1800(L) x 550(W) x 810(H)mm
  • 1 x Table & 2 x Seats (Subsurface Mount Leg)
  • Overall Setting Weight:
    • Merbau Hardwood: 121kg
    • Enviroslat Walnut: 202kg
    • Anodised Aluminium: 114kg
    • Wood Grain Aluminium (Western Red Cedar & Blonde Oak): 114kg
  • Enviroslat Composite slats are partially manufactured from a soft recycled plastic which may result in minor bowing and warping of the slats over time.
  • Wood Grain Powder Coat has a 2-stage process with a lightly textured surface and is more durable than a standard powder coat. It is created using a unique coating process. This is a process of powder coating the aluminium, partially curing it, applying another layer of powder and then using a decorative drum to stamp the high-definition grain pattern into the surface. The aluminium is then fully cured combining both layers into a single, ultra durable powder coated finish. The thickness is 80 microns.
