Concrete Frustum Bollard


Code: 09-BCF-ASF

+

Australian Made

100% Designed and manufactured locally.

Recycled Content

The higher the percentage in the triangle, the better.

10

Life Expectancy

A conservative indication of the minimum expected life of the product.

Repurposing

End of-life repurposing is expected to be possible.

Carbon Star Ranking

The higher the number of stars the lower the carbon content in the product.

Carbon Content Score

The score is only shown to logged in users.

Description

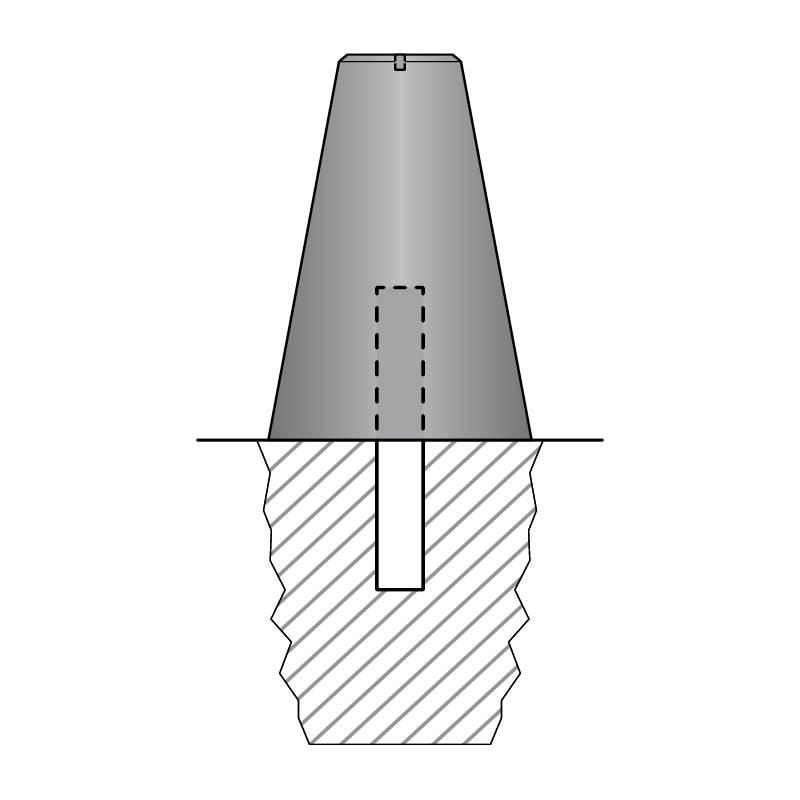

Astra Architectural Pre-Cast Concrete Bollards are a creative street furniture item and are ideal for use as anti-terror devices, anti ram-raid bollards, or simply to demarcate between areas. The weight of the concrete combined with the steel pipe ground insert helps stop out-of-control vehicles. Concrete bollards can be free-standing or securely positioned for use as a fixed or removable bollard. Available with cast-in M12 threaded inserts to suit lifting equipment. The standard off-form concrete finish can be painted on site if desired. Concrete bollards are made to order - lead time applies.

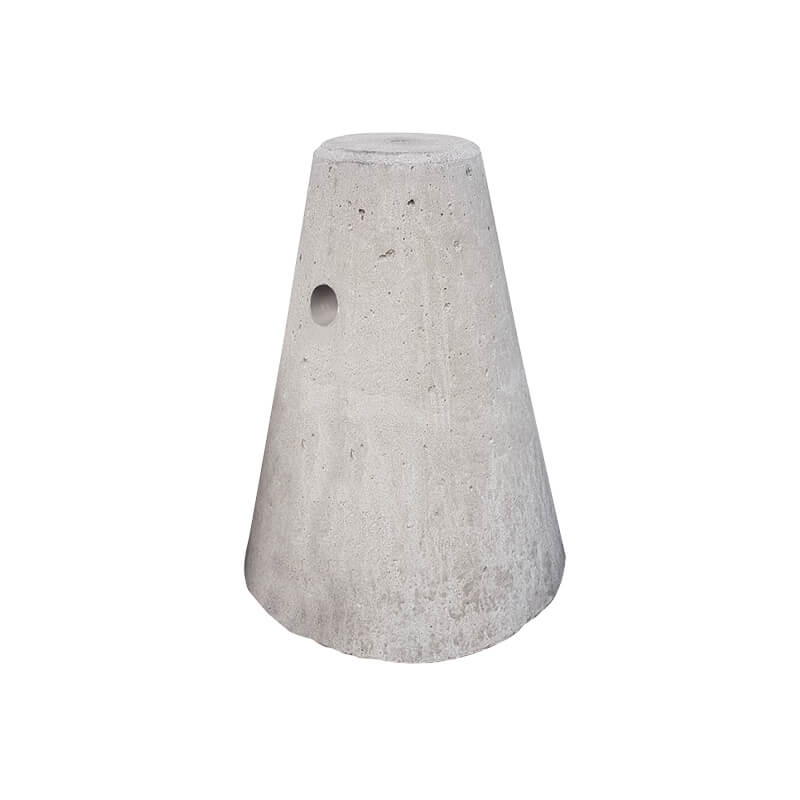

Concrete Frustum Bollards are a cone shape with a flat top and incorporate a horizontal cross-hole for decoration, barrier rails or chain. A threaded insert on top of this bollard also provides for secure attachment of lifting eyebolts or barrier chain rings. Made to order - lead time applies.

See more product & company information in our downloadable resources page here

Downloads

Spec Sheet (265 Kb)

2D - DWG (22 Kb)

3D - DWG (132 Kb)

Specifications

  • Size: ø600(base) / ø230(top) x 750(H)mm
  • Cross Hole: ø60mm at 515mm above ground.
  • Weight: 250kg
